Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

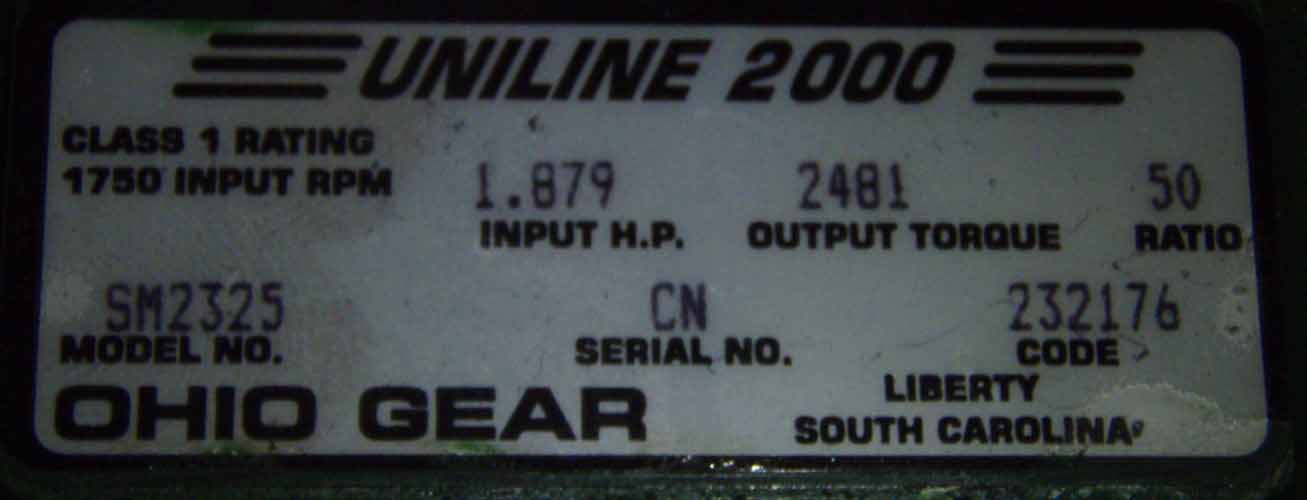

N A M E P L A T E       D A T A
Manufacturer:      OHIO GEAR     UNILINE 2000 SERIES Our ID No.      006667
Model No:      SM2325 Ratio:      50
S/N      CN232176 Center Distance      3.25
IP Speed      1750 HP rating      1.88
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      2,481 Lb-Inches Shaft Diameters High Speed:  0.875
Low Speed:  1.938 HOLLOW
Weight      80 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
50:1

35 RPM
1.88 HP
1170 RPM
23 RPM
1.62 HP
870 RPM
17 RPM
1.41 HP
Notes:
   NEW SURPLUS
