Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

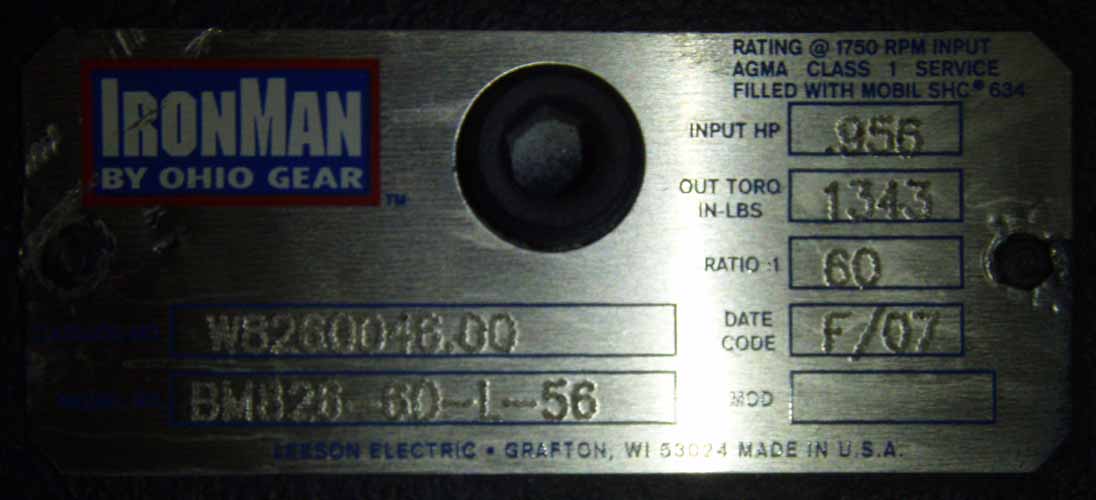

N A M E P L A T E       D A T A
Manufacturer:      OHIO GEAR     IRONMAN Our ID No.      006672
Model No:      BM826-60-L-56 Ratio:      60
CATALOG NUMBER      W8260046 Center Distance      2.62
IP Speed      1750 HP rating      0.96
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      1,343 Lb-Inches Shaft Diameters High Speed:  0.750 / 56C
Low Speed:  1.125
Weight      65 Lbs Approx. Assembly      L
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
60:1

29 RPM
0.96 HP
1170 RPM
19 RPM
0.77 HP
870 RPM
14 RPM
0.64 HP
Notes:
   NEW SURPLUS

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

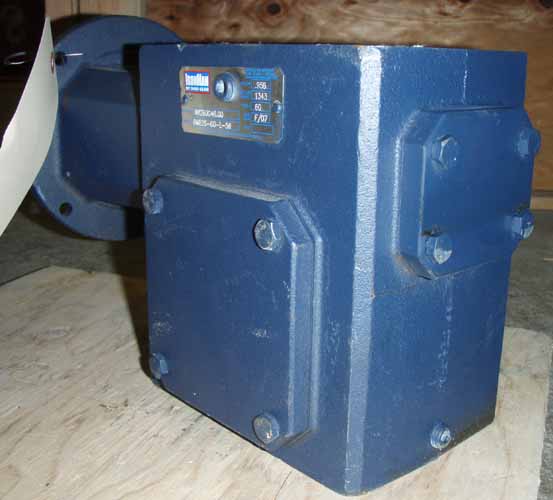

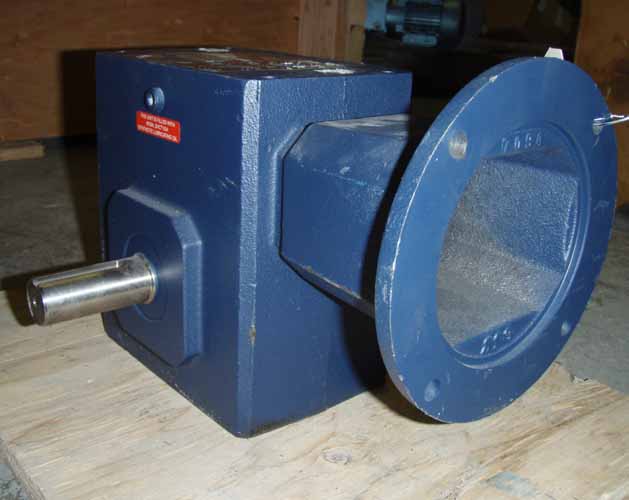

Click on images for larger view.
