Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

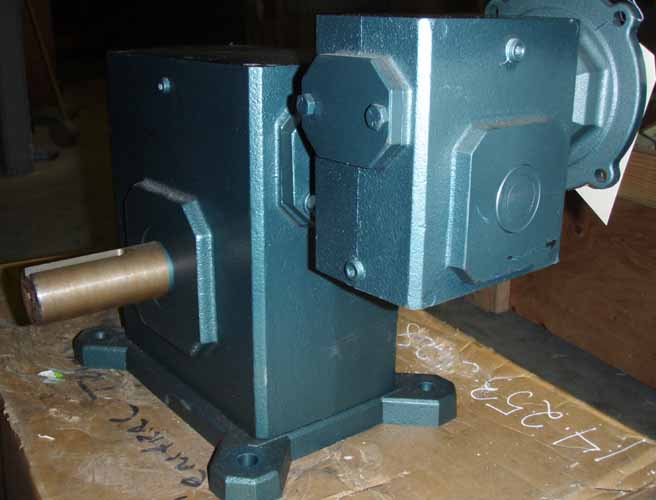

Manufacturer:      GROVE GEAR     Flexaline SERIES Our ID No.      006682
Model No:      DTMQ242-1 Ratio:      600
S/N      87009780406 Center Distance      P=2.06/S=4.25
IP Speed      1750 HP rating      0.854
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      10,340 Lb-Inches Shaft Diameters High Speed:  140TC
Low Speed:  1.875
Weight      180 Lbs Approx. Assembly      1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
600:1

2.92 RPM
0.854 HP
1170 RPM
1.95 RPM
0.612 HP
870 RPM
1.45 RPM
0.477 HP
Notes:
   NEW SURPLUS
