Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      GROVE GEAR     Flexaline SERIES Our ID No.      006687
Model No:      DTMQ1600-2 Ratio:      600
S/N       7660800496 Center Distance      P=3.25
     S=6.00
IP Speed      1750 HP rating      2.23
OP Speed:      3 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      23,950 Lb-Inches Shaft Diameters High Speed:  140TC or 56C with a bushing
Low Speed:  2.500
Weight      450 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
600 :1

3 RPM
2.23 HP
1170 RPM
2 RPM
1.65 HP
870 RPM
1.5 RPM
1.39 HP
Notes:
   Unused Surplus

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

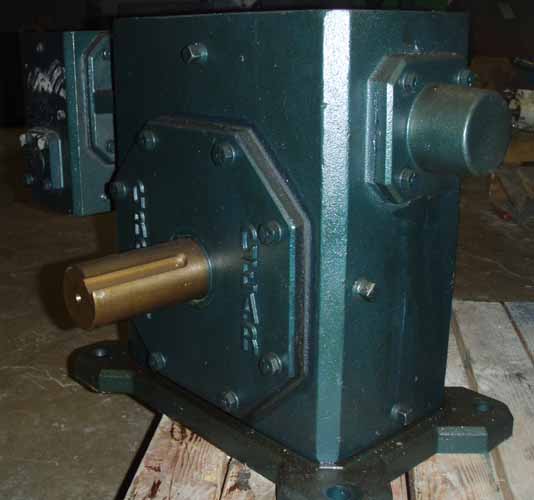

Click on images for larger view.
