- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      BROOK HANSEN TRANSMISSION Our ID No.      006691
Model:      QVRH4-CUN-200 Ratio:      200.85
MO# or S/N      00/R05A 285716 Alt. S/N
IP Speed      1750 HP rating      126 Cat. Rating
OP Speed:      8.7 SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      909,000 Lb-Inches Shaft Diameters High Speed:  2.000
Low Speed:  7.500
Weight      4,750 Lbs Approx. Assembly      LOW SPEED SHAFT UP
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
200.85:1

8.7 RPM
126 HP
1430 RPM
7.2 RPM
105 HP
1170 RPM
5.8 RPM
84 HP
870 RPM
4.4 RPM
63 HP
Notes:
Condition:


USED, Was in service for approx 4.5 years

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

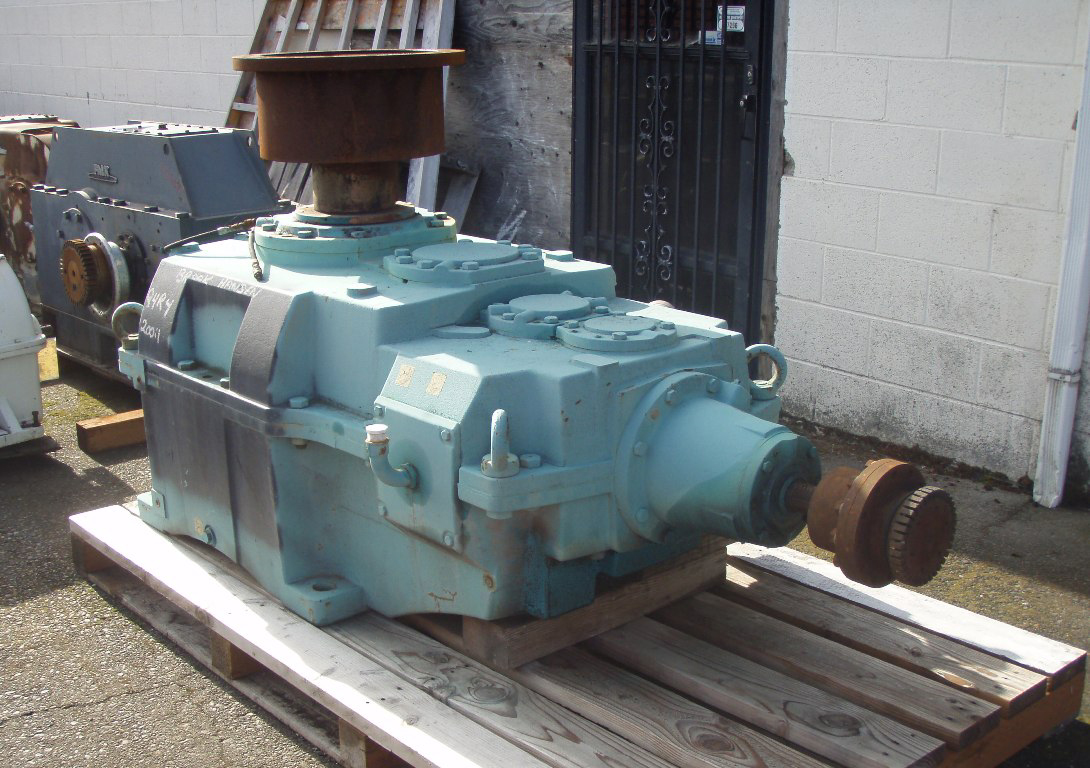

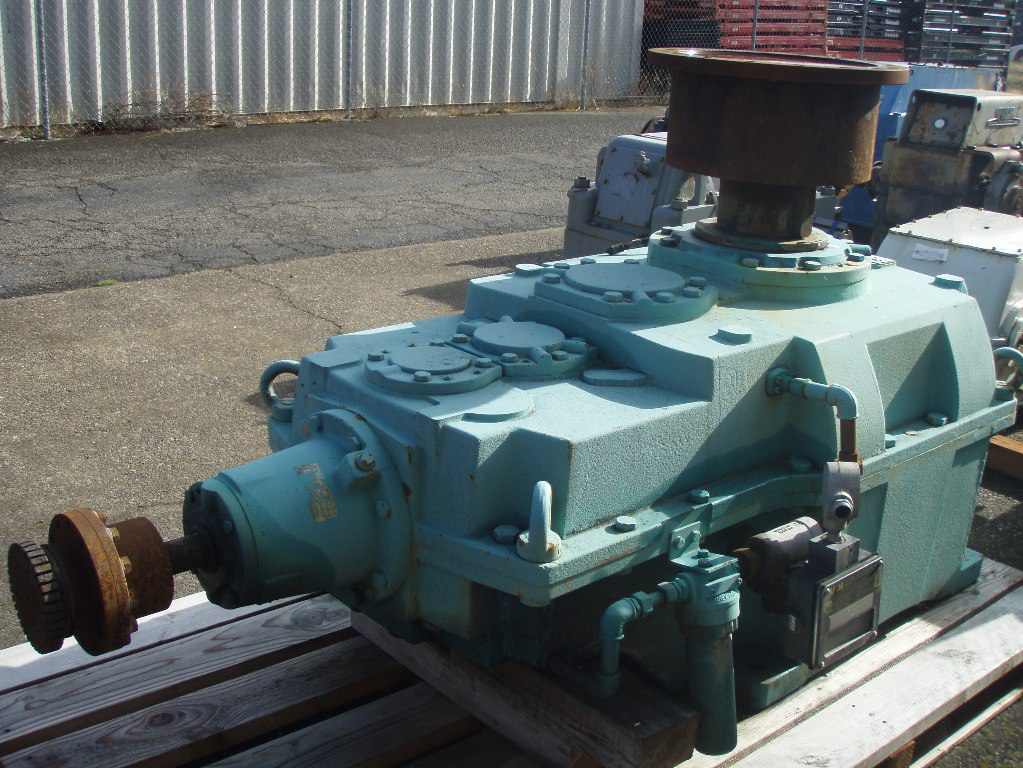

Click on images for larger view.
