Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

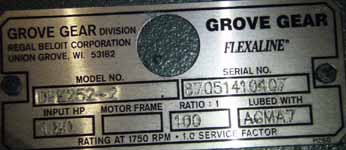

N A M E P L A T E       D A T A
Manufacturer:      GROVE GEAR     Flexaline SERIES Our ID No.      006695
Model No:      DFE252-2 Ratio:      100
S/N      87051410407 Center Distance      P=2.62 / S=5.25
IP Speed      1750 HP rating      4.80
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      13,053 Lb-Inches Shaft Diameters High Speed:  0.750
Low Speed:  2.1875
Weight      350 Lbs Approx. Assembly      2
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
100:1

17.5 RPM
4.80 HP
1170 RPM
11.7 RPM
4.05 HP
870 RPM
8.70 RPM
3.47 HP
Notes:
   UNUSED
