Klistoff Equipment & Machinery, Inc. - Speed Reducer Data Sheet - |
|||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|||||||||||||||||||||||||||||||||

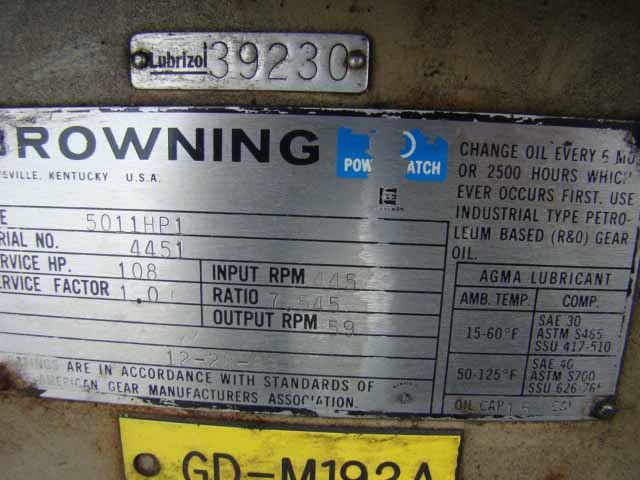

Manufacturer: | Browning PowerMatch | Our ID No. | 006743 | ||||||||||||||||||||||||||||||
Model: | 5011HP1 | Ratio: | 7.545 | ||||||||||||||||||||||||||||||
MO# or S/N | 4451 | Alt. S/N | |||||||||||||||||||||||||||||||
IP Speed | 445 | HP rating | 108 | Cat. Rating | |||||||||||||||||||||||||||||
OP Speed: | 59 | SF / SC | 1.0 | ||||||||||||||||||||||||||||||
Date | 12/28/83 | Oil Capacity | |||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||
Torque Rating | 117,140 Lb-Inches | Shaft Diameters |
High Speed:
2.750 Low Speed: 4.500 |
||||||||||||||||||||||||||||||
Weight | 2,000 Lbs Approx. | Assembly | 26 | ||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||
Notes: |
Condition: |
||||||||||||||||||||||||||||||||
|
Click on images for larger view. |
