- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A

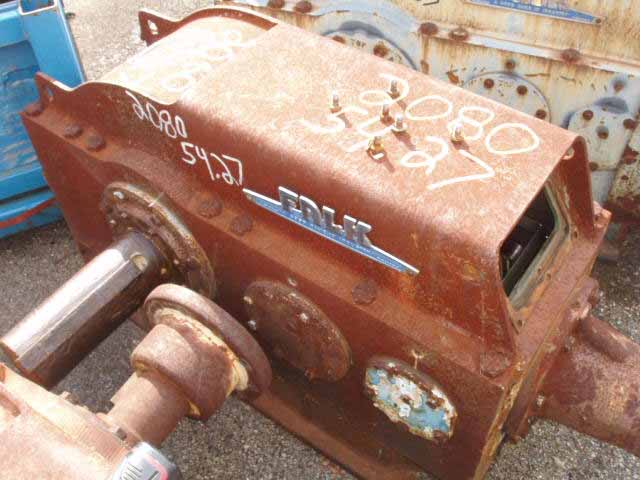

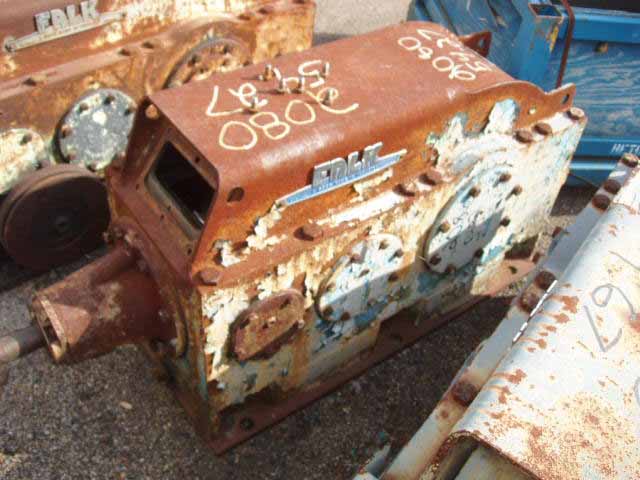

Manufacturer:      FALK Our ID No.      006770
Model:      2080YB3A Ratio:      54.27
MO# or S/N      8-770938 Alt. S/N
IP Speed      1170 HP rating       Cat. Rating
OP Speed:       SF / SC      3.64
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      80,800 Lb-Inches Shaft Diameters High Speed:  1.500
Low Speed:  4.000
Weight      1300 Lbs Approx. Assembly      ASSEMBLY 51
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
54.27:1

34 RPM
48.4 HP
1430 RPM
27 RPM
40.1 HP
1170 RPM
22 RPM
33.2 HP
870 RPM
17 RPM
25.2 HP
720 RPM
14 RPM
20.9 HP
580 RPM
11 RPM
17.1 HP
Notes:
Condition:

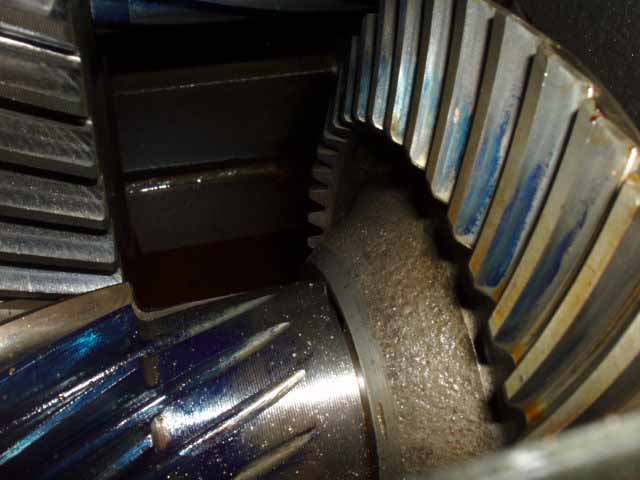

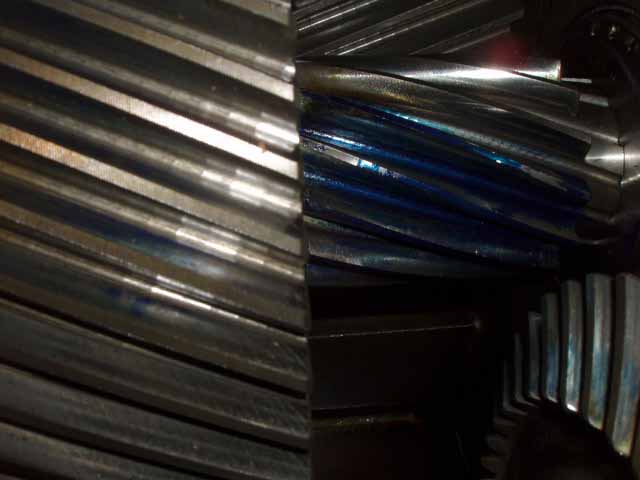

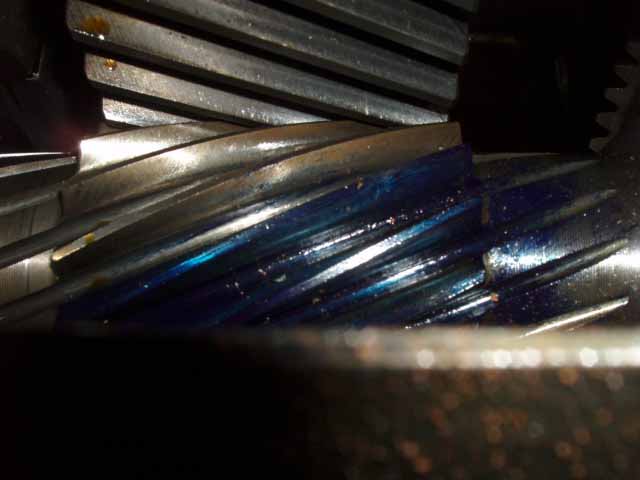

Used, gearing is in like new condition.
