- Speed Reducer Data Sheet -

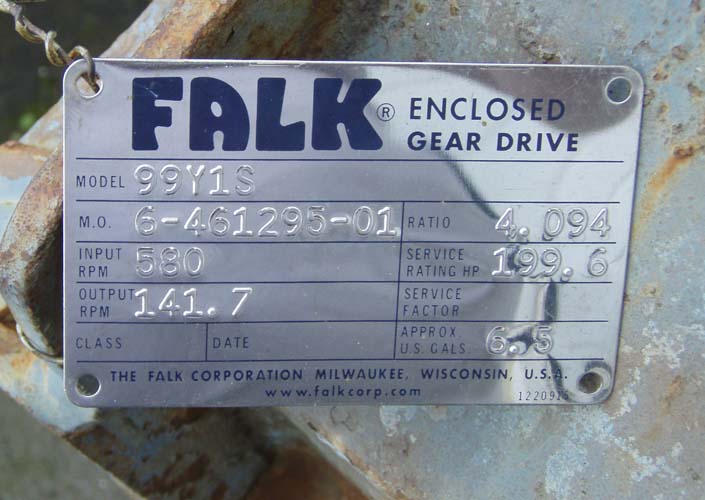

N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      006849
Model:      2090Y1S (99Y1S) Ratio:      4.094:1
MO# or S/N      6-461295-01 Alt. S/N
IP Speed      580 RPM HP rating      199.6 HP Cat. Rating
OP Speed:      141.7 SF / SC
Date       Oil Capacity       6.5
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      88,600 Lb-Inches Shaft Diameters High Speed:   2.750
Low Speed:  4.500
Weight      1600 Lbs. Approx Assembly      Parallel
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal Rating
W/No Cooling
1750
4.094:1

420
433 HP
1430
350
376 HP
1170
280
327 HP
870
215
265 HP
720
175
232 HP
580
140
200 HP
Notes:
