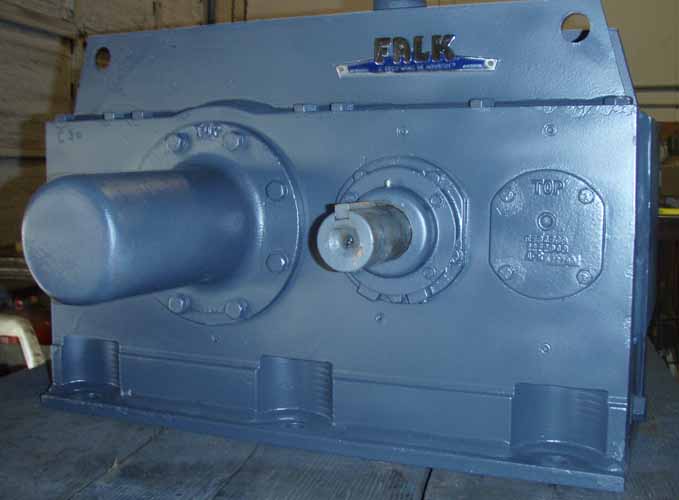

- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      006874
Model:      2060Y1LD Ratio:      3.381
MO# or S/N      8-966552 Alt. S/N
IP Speed      1231 HP rating      125 Cat. Rating
OP Speed:      364 SF / SC      1.72 SF
Date      12/89 Oil Capacity      2.5 APPROX US GALS
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      37,000 Lb-Inches Shaft Diameters High Speed:  2.000
Low Speed:  3.000
Weight      600 Lbs Approx. Assembly      ASSEMBLY 1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal
Ratings
W/O Cooling
1750 RPM
3.381:1

520 RPM
304 HP
142 HP
1430 RPM
420 RPM
257 HP
150 HP
1170 RPM
350 RPM
217 HP
153 HP
870 RPM
260 RPM
168 HP
160 HP
720 RPM
210 RPM
210 HP
Thermal rating exceeds mechanical rating
580 RPM
175 RPM
118 HP
Notes:
Condition:


New Surplus
