- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      006921
Model:      252-5EZ2-06A4 Ratio:      9.248
MO# or S/N      7-6M3071-01 Alt. S/N
IP Speed      1750 HP rating      252 Cat. Rating
OP Speed:      190 SF / SC      CL II
Date      2/76 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      14,000 Lb-Inches Shaft Diameters High Speed:  1.500
Low Speed:  2.875
Weight      575 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
9.248

190 RPM
41.8 HP
1430 RPM
155 RPM
35.0 HP
1170 RPM
125 RPM
29.2 HP
870 RPM
95 RPM
22.3 HP
720 RPM
77 RPM
18.7 HP
Notes:
Condition:
Used

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

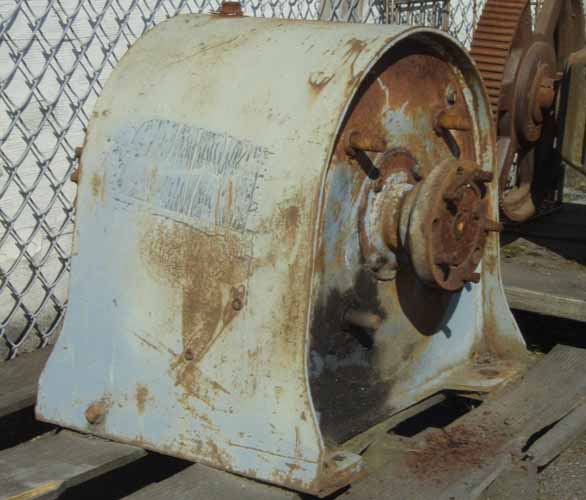

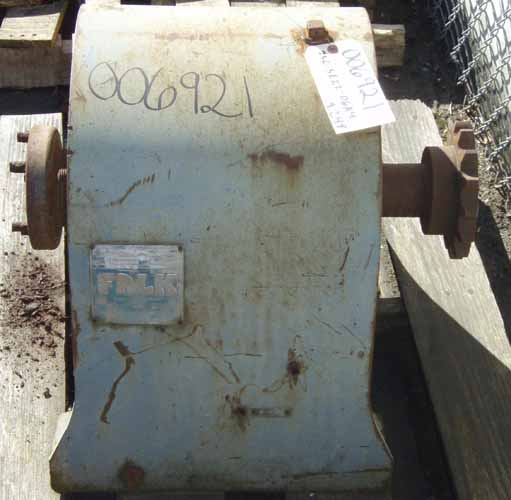

Click on images for larger view.
