- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FLENDER Our ID No.      006925
Model:      SDN500 Ratio:      50.869
MO# or S/N      480006022 Alt. S/N
IP Speed      1170 HP rating      580 Cat. Rating
OP Speed:      23 SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      1,500,000 Lb-Inches Shaft Diameters High Speed:
Low Speed:
Weight      10,000 Lbs Approx. Assembly      Right Hand
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
50.869

35 RPM
840 HP
1170 RPM
23 RPM
580 HP
870 RPM
17 RPM
450 HP
720 RPM
14 RPM
370 HP
Notes:
Condition:


Excellent

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

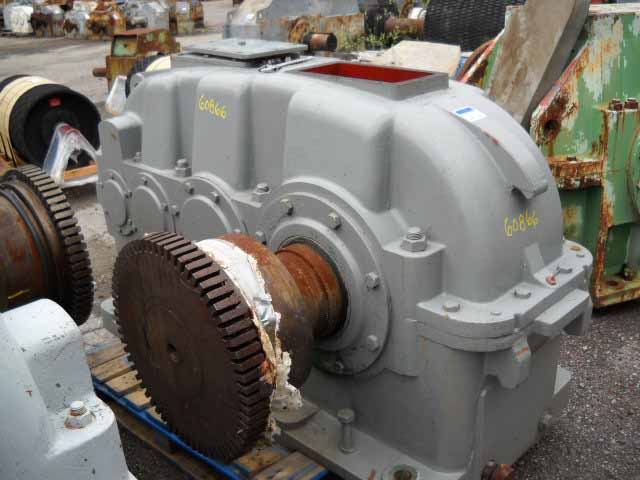

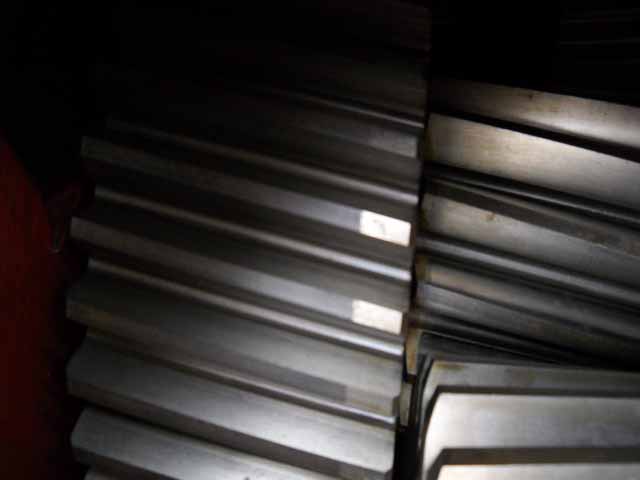

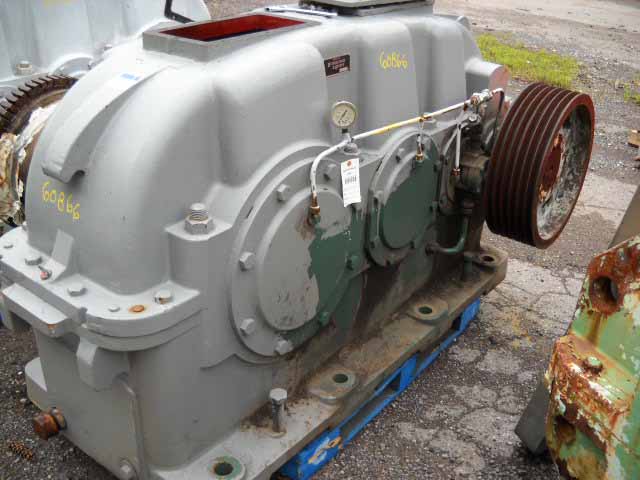

Click on images for larger view.
