- Speed Reducer Data Sheet -
HOME

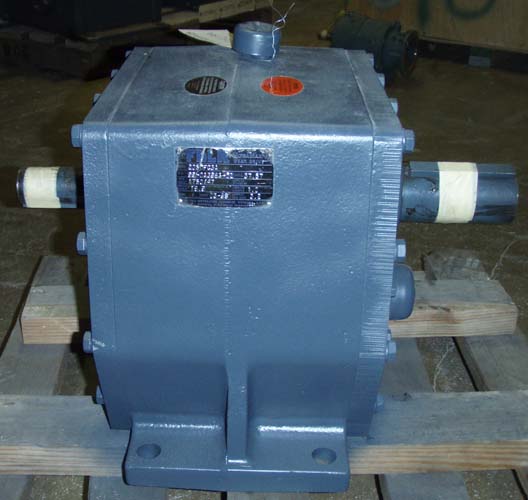

N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      006928
Model:      2050F3A Ratio:      37.57
MO# or S/N      99-0A3983-02 Alt. S/N
IP Speed      1750 HP rating       Cat. Rating      18.9
OP Speed:       47 SF / SC      1.0
Date       3-99 Oil Capacity       3.2
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      25,600 Lb-Inches Shaft Diameters High Speed:  1.625
Low Speed:  2.500
Weight      350 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
37.57

45 RPM
18.9 HP
1430 RPM
37 RPM
15.5 HP
1170 RPM
30 RPM
12.7 HP
870 RPM
22 RPM
9.42 HP
720 RPM
18 RPM
7.8 HP
580 RPM
15 RPM
6.29 HP
Notes:
Condition:


UNUSED SURPLUS
