Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

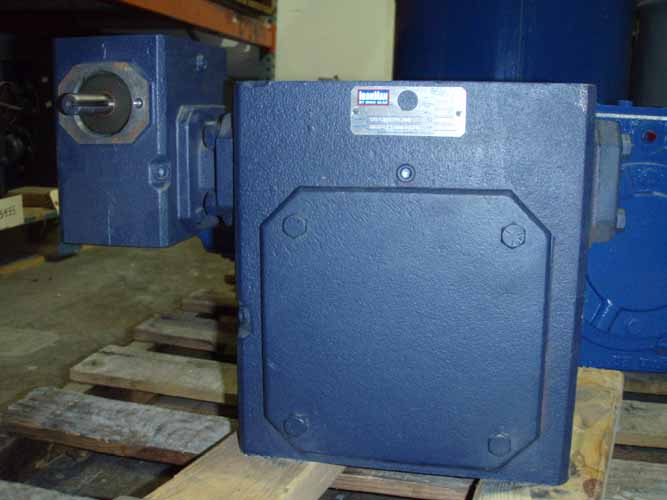

Manufacturer:      OHIO GEAR     IRONMAN Our ID No.      006938
Model No:      DM842-500-56-L
     D842-500-L 		Ratio:      500
CATALOG NUMBER      W8422179.00 Center Distance      P=2.06 / S=4.25
IP Speed      1750 HP rating      0.967
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      10,283 Lb-Inches Shaft Diameters High Speed:  0.625
Low Speed:  1.875
Weight      180 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
500

3.50 RPM
0.967 HP
1170 RPM
2.34 RPM
0.688 HP
870 RPM
1.74 RPM
0.534 HP
580 RPM
RPM
HP
Notes:
   NEW SURPLUS
