Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      006977
Model:      7GHF Ratio:      2.884
MO# or S/N      5920-0697 Alt. S/N
IP Speed      760 HP rating      18 Cat. Rating      170
OP Speed:      264 SF / SC      9
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      37,300 Lb-Inches Shaft Diameters High Speed:  2.8750
Low Speed:  1.9375
Weight      900 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
2.884

607 RPM
361 HP
1170 RPM
406 RPM
259 HP
870 RPM
302 RPM
197 HP
720 RPM
250 RPM
170 HP
580 RPM
201 RPM
138 HP
Notes:
Condition: USED

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

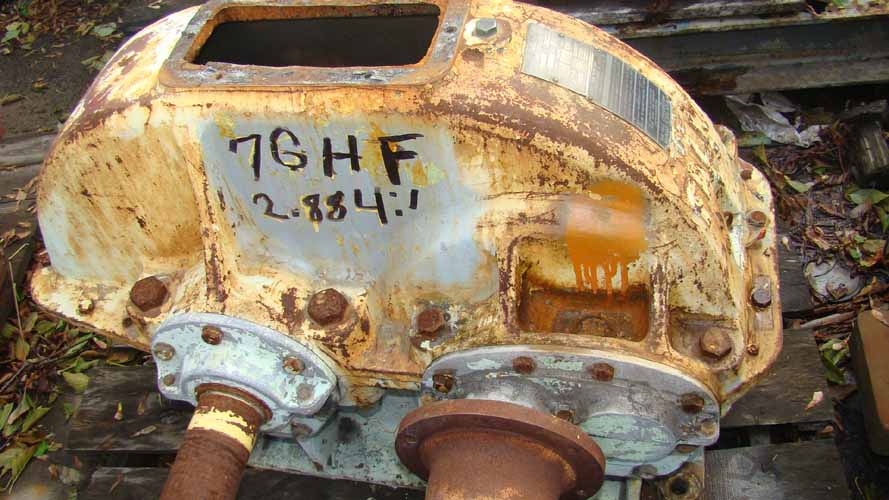

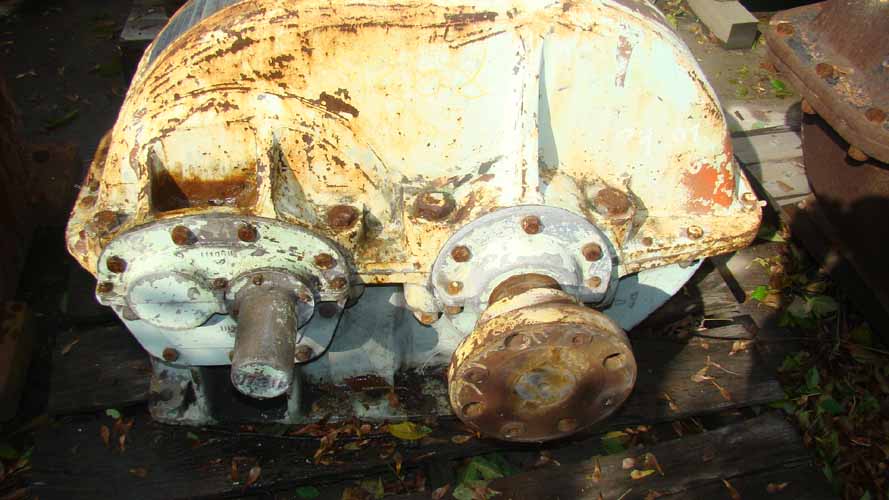

Click on images for larger view.
