- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

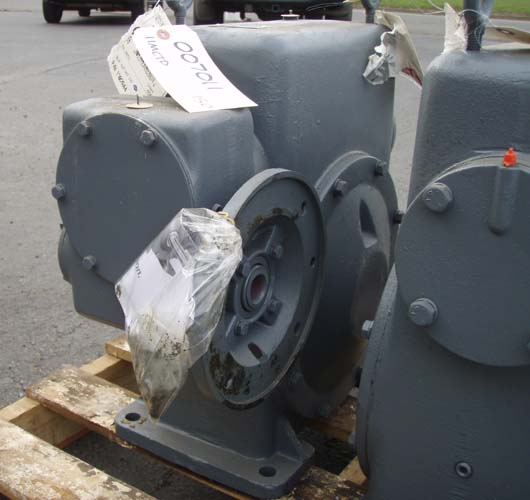

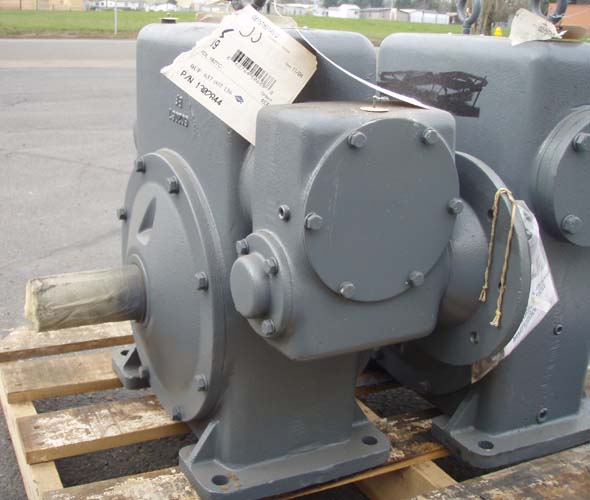

Manufacturer:      WINSMITH WORM GEAR REDUCER Our ID No.       007011
Model:       11MCTD Ratio:      150
S/N       011MCTDD3000J9 Center Distance       P = 3.0 S = 6.5
IP Speed      1750 HP rating       5.77
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating       20,320 Lb-Inches Shaft Diameters High Speed:   180TC
Low Speed:   2.500
Weight       310 Lbs Approx. Assembly       RD-L
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
150:1

12 RPM
5.77 HP
1170 RPM
8 RPM
4.66 HP
Notes:
    PRIMARY IS WORM UNDER, SECONDARY IS WORM OVER.
