- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      007148
Model:      2100Y1LD Ratio:      5.240:1
MO# or S/N      8-970976 Alt. S/N
IP Speed      1740 HP rating      200 Cat. Rating
OP Speed:      332 SF / SC      3.26 SF
Date      5/90 Oil Capacity      15
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      126,000 Lb-Inches Shaft Diameters High Speed:  3.000
Low Speed:  5.000
Weight      2,200 Lbs Approx. Assembly      Assembly # 1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal
Ratings
W/O Cooling
1750 RPM
5.240:1

334 RPM
682 HP
307 HP
1430 RPM
273 RPM
543 HP
326 HP
1170 RPM
223 RPM
459 HP
334 HP
870 RPM
166 RPM
357 HP
352 HP
720 RPM
137 RPM
304 HP
Thermal Rating Exceeds Mechanical HP Rating
580 RPM
111 RPM
251 HP
|
Notes:
Condition:
Used, very good

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

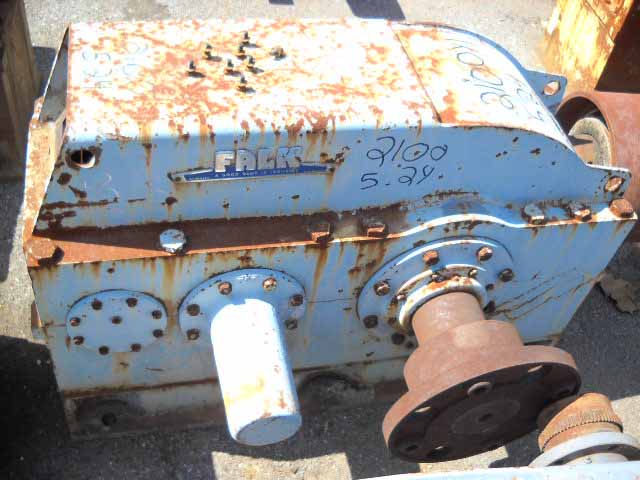

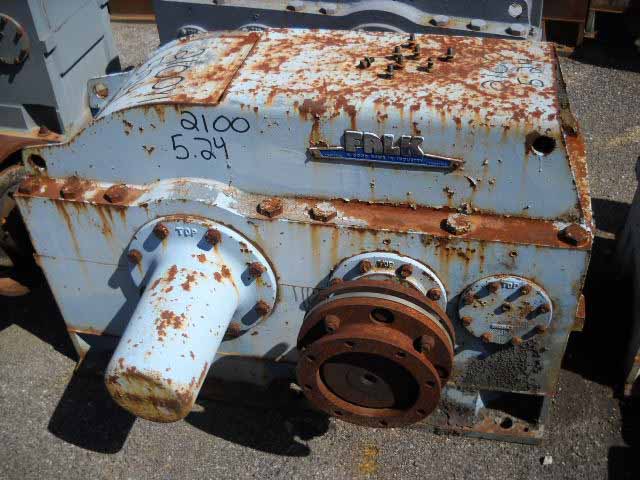

Click on images for larger view.
