SEW-EURODRIVE DATA SHEET
R E D U C E R       N A M E P L A T E       D A T A
TYPE:      R87DV132ML8/4BM15HR Our ID No.      007167
SO#      850121266.02.02.001
Input RPM      870/1750 Output RPM      164/330
HP       Torque      1340 lb-in
Ratio:      5.30 Service Factor      1.0
Mounting Pos      M1
M O T O R       N A M E P L A T E       D A T A
TYPE:      DFV132ML8/4BM15HR Enclosure:      TEFC3PH
SO#      850121266.02.02.001
Volts      460/YY HZ      60
Amps      7.2/9.5 Code      F Nom Eff       Conn Dia.      DT53
HP      3.5/7.5 S.F.      1.0 Duty      CONT Design Letter
RPM      870/1750 Ins Class      B Max Amb      40
Brake V      460AC Torque      55 lb-ft Control      BGE1.5
A D D I T I O N A L      U N I T       I N F O R M A T I O N
Flange Diameter       Shaft Diameters High Speed:
Low Speed:  2.125
Notes:
Condition:Used



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

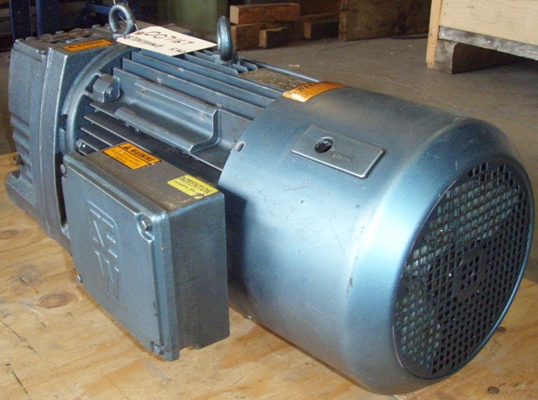

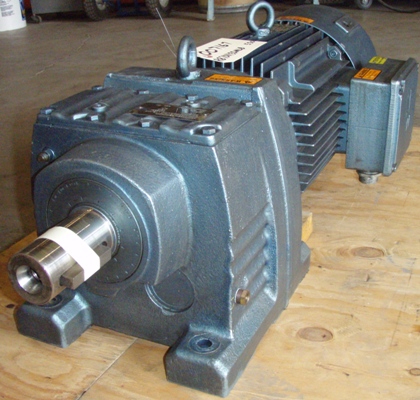

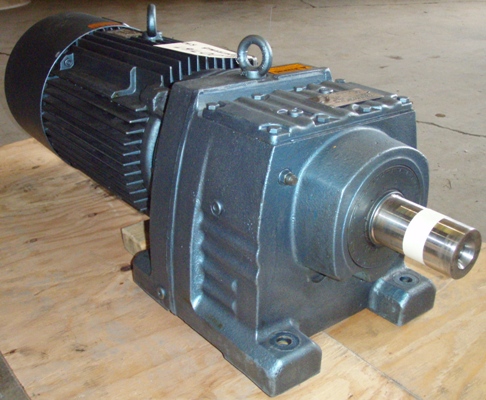

Click on images for larger view.
