- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      007174
Model:      2050Y1-LD Ratio:      4.190
MO# or S/N      8-966528 Alt. S/N
IP Speed      1750/2500 RPM HP rating      75 HP Cat. Rating
OP Speed:      417/596 RPM SF / SC      2.24 SF
Date      12-89 Oil Capacity      2.75
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      25,300 Lb-Inches Shaft Diameters High Speed:  1.750
Low Speed:  2.750
Weight      600 Lbs Approx. Assembly      1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
4.190

420 RPM
168 HP
1430 RPM
350 RPM
142 HP
1170 RPM
280 RPM
119 HP
870 RPM
210 RPM
92.4 HP
720 RPM
175 RPM
78.2 HP
580 RPM
140 RPM
64.5 HP
Notes:
Condition: NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

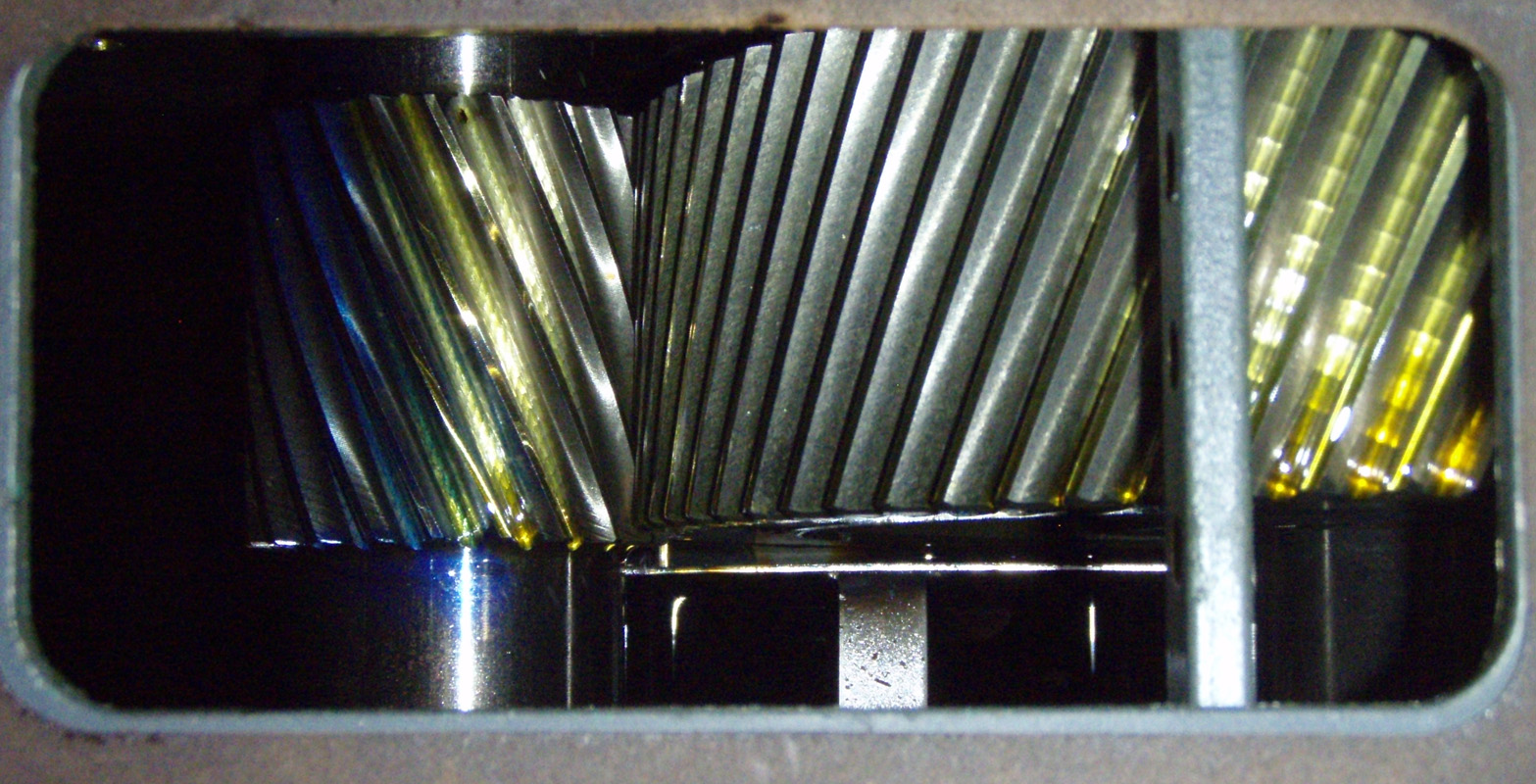

Click on images for larger view.
