- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      007175
Model:      2050Y1-LD Ratio:      2.227
MO# or S/N      8-966938 Alt. S/N
IP Speed      1150 RPM HP rating      100 HP Cat. Rating
OP Speed:      516.4 RPM SF / SC      1.92 SF
Date      11-89 Oil Capacity      2.8
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      20,400 Lb-Inches Shaft Diameters High Speed:  1.750
Low Speed:  2.750
Weight      600 Lbs Approx. Assembly      2
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
2.227

780 RPM
255 HP
1430 RPM
640 RPM
221 HP
1170 RPM
520 RPM
\192 HP
870 RPM
390 RPM
156 HP
720 RPM
320 RPM
131 HP
580 RPM
260 RPM
106 HP
Notes:
Condition: NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

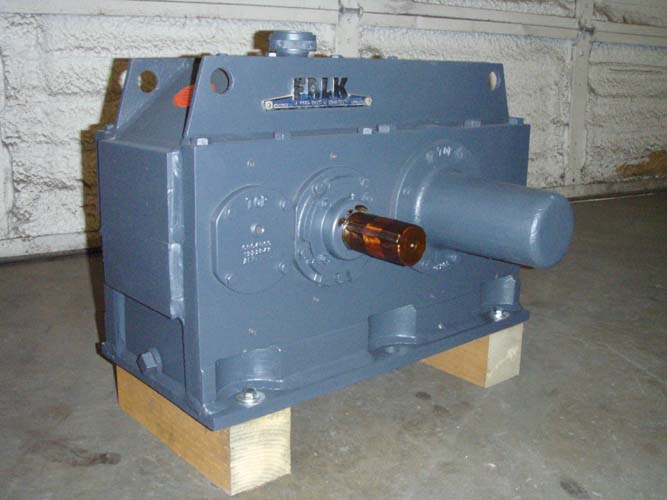

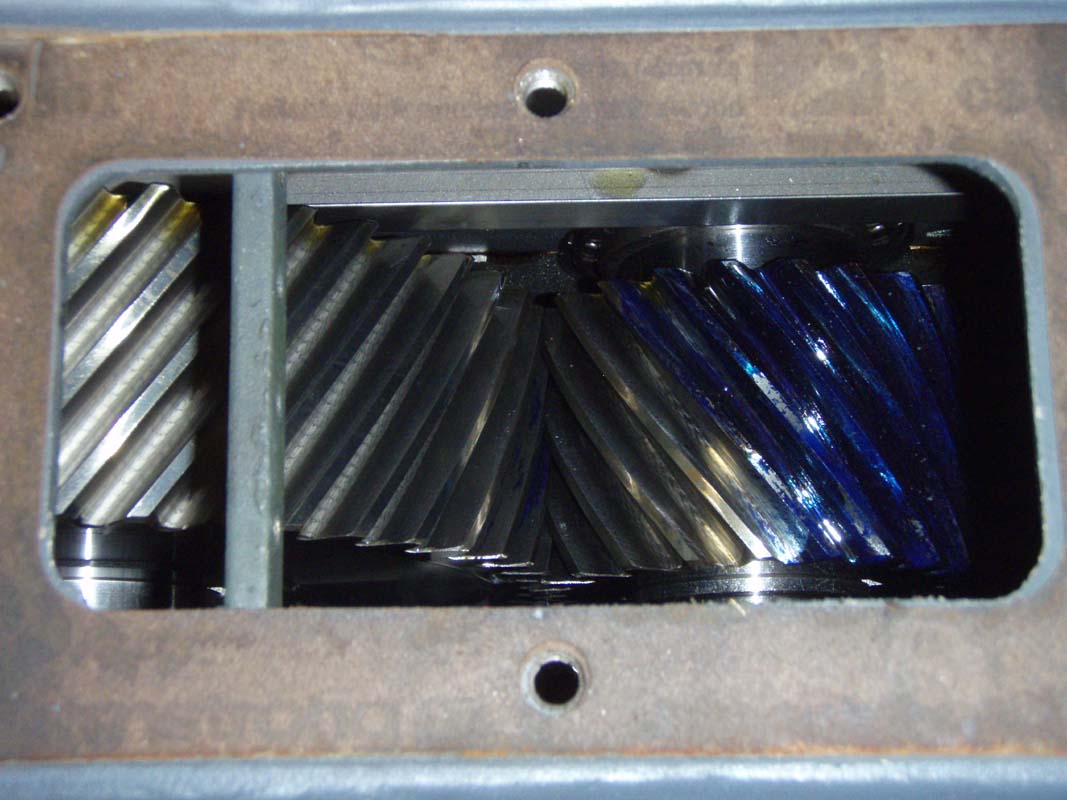

Click on images for larger view.
