Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

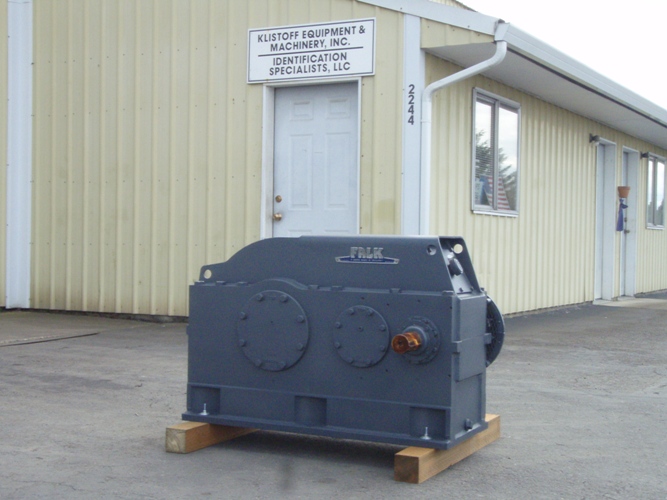

Manufacturer:      FALK Our ID No.      007177
Model:      2100Y2LB Ratio:      11.16
MO# or S/N      8-666282 Alt. S/N
IP Speed      1750 HP rating      200 Cat. Rating
OP Speed:      157 SF / SC      2.10
Date      01/87 Oil Capacity      7.8
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      169,000 Lb-Inches Shaft Diameters High Speed:  2.500
Low Speed:  5.000
Weight      2300 Lbs Approx. Assembly      18
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal ratings
with 1 cooling fan
1750 RPM
11.16

155 RPM
420 HP
204 HP
1430 RPM
125 RPM
353 HP
253 HP
1170 RPM
100 RPM
296 HP
Exceeds
Mechanical
Rating
870 RPM
77 RPM
227 HP
720 RPM
62 RPM
189 HP
580 RPM
50 RPM
154 HP
Notes:
Condition: New Surplus



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci



Click on images for larger view.
