Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      007178
Model:      2100Y1L Ratio:      5.056:1
MO# or S/N      91-066274 Alt. S/N
IP Speed      860 HP rating      150 Cat. Rating
OP Speed:       SF / SC      2.16 SF
Date      08/91 Oil Capacity      7.8
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      130,000 Lb-Inches Shaft Diameters High Speed:  3.000
Low Speed:  5.000
Weight      2,200 Lbs Approx. Assembly      Assembly # 19
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal
Ratings
W/O Cooling
1750 RPM
5.056:1

350 RPM
713 HP
307 HP
1430 RPM
280 RPM
604 HP
336 HP
1170 RPM
230 RPM
511 HP
402 HP
870 RPM
175 RPM
398 HP
Thermal Rating Exceeds Mechanical HP Rating
720 RPM
140 RPM
339 HP
|
580 RPM
115 RPM
281 HP
|
Notes:
Condition:

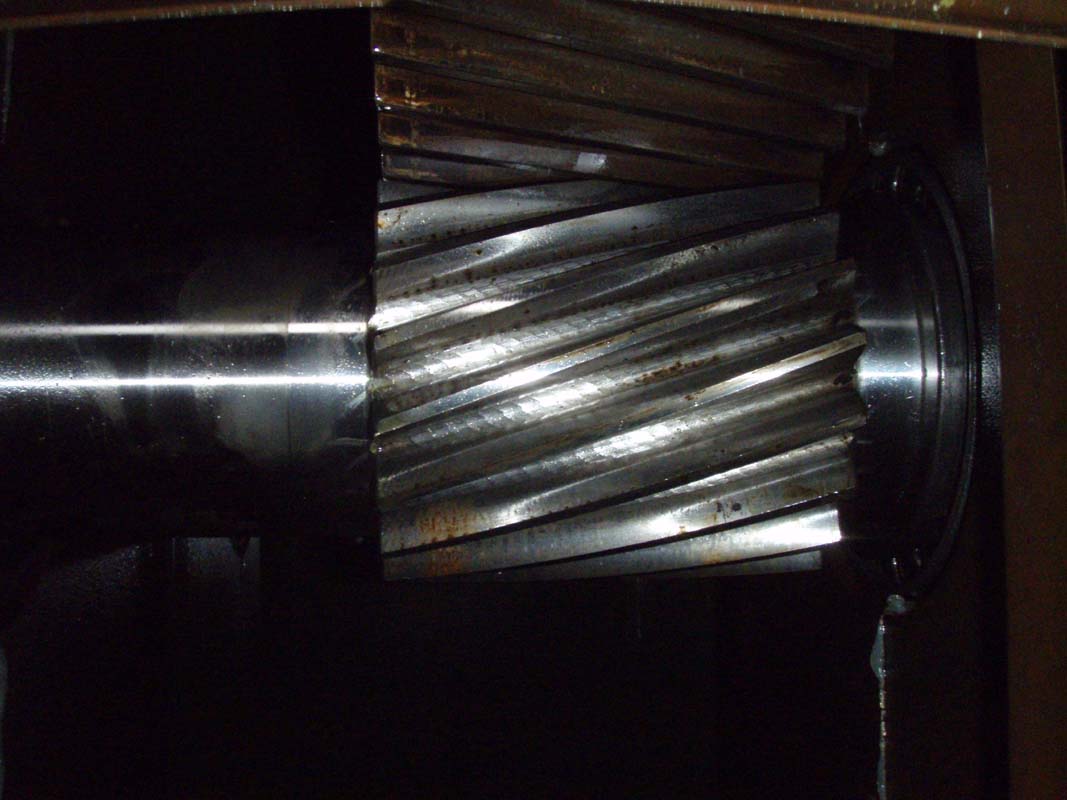

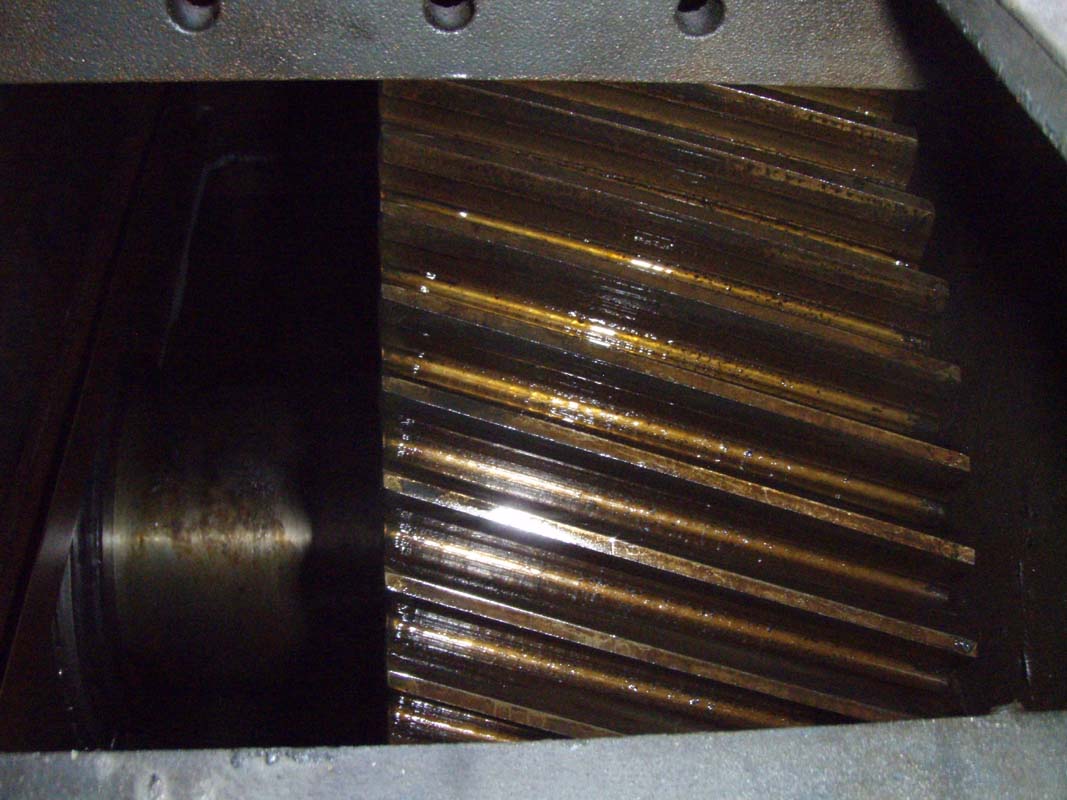

Used, gearing in excellent condition

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

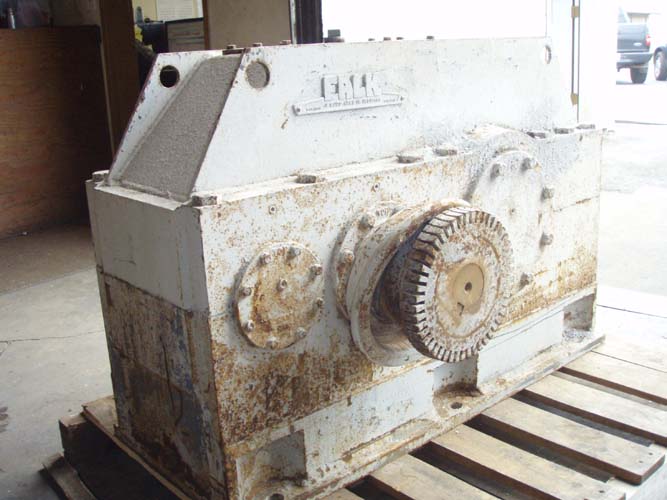

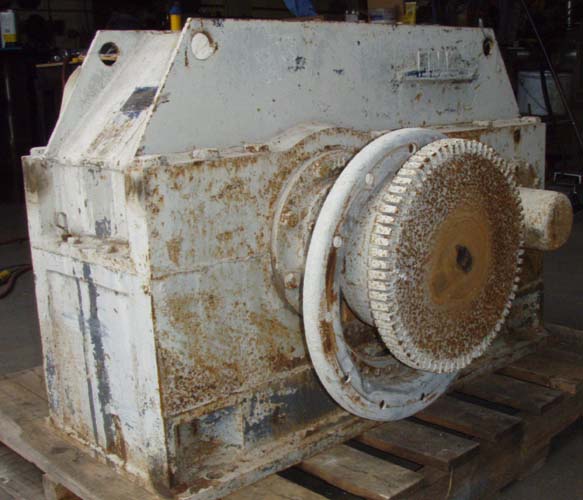

Click on images for larger view.
