- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      DODGE TIGEAR      Our ID No.  007224
Model No:   Q350B015Z140K1 Ratio:   15
S/N   MZ94662 Center Distance   3.5
IP Speed   1750 HP rating   4.87
OP Speed:   SF / SC  1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating  2278 Lb-Inches Shaft Diameters High Speed: .875 Hollow
Low Speed: 1.5

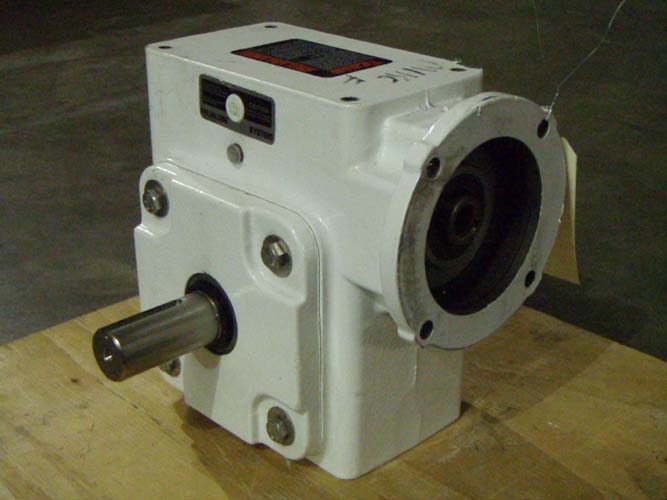

Weight   100 Lbs Approx. Assembly  See Picture Below
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
15:1

117 RPM
4.87 HP
1170 RPM
78 RPM
3.92 HP
Notes:
    CONDITION: Unused Surplus
