- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       CONE DRIVE Our ID No.       007248
Model:       MSHV358B Ratio:       10:1
MO# or S/N       09511416-100-1 Alt. S/N
IP Speed       HP rating       8.94 Cat. Rating       17.4
OP Speed:       SF / SC       1.0
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       5630 Lb-Inches Shaft Diameters High Speed:   1 3/16
Low Speed:   1 15/16
Weight       120 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
10:1

175 RPM
17.4 HP
1170 RPM
117 RPM
13.9 HP
870 RPM
87 RPM
12.0 HP
720 RPM
72 RPM
10.7 HP
580 RPM
58 RPM
9.3 HP
Notes:
Condition: NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

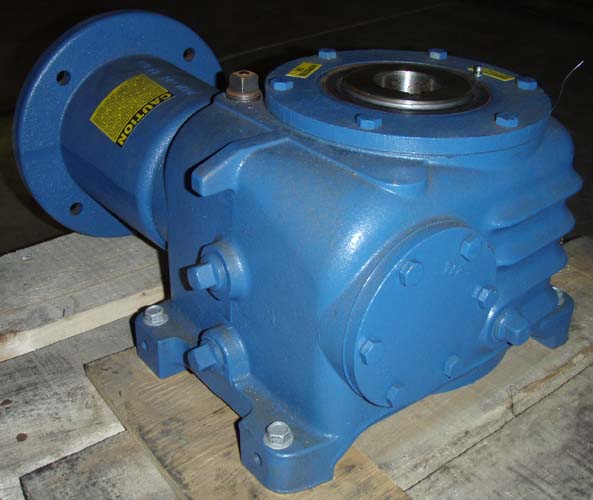

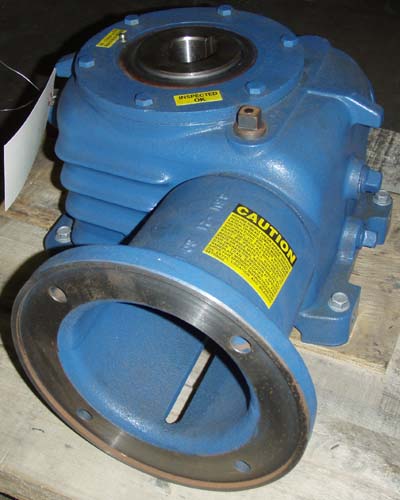

Click on images for larger view.
