- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       DODGE Our ID No.       007256
Model:       56CM12A Ratio:       101:1
MO# or S/N       7559502001BL Alt. S/N       079167-01-AF
IP Speed       1750 HP rating       0.40 Cat. Rating
OP Speed:       17 SF / SC       1.00
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       1,062 Lb-Inches Shaft Diameters High Speed:   COUPLING
Low Speed:   0.875
Weight       27 Lbs Approx. Assembly       K1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
101:1

17 RPM
0.41 HP
1170 RPM
11.5 RPM
0.31 HP
870 RPM
8.5 RPM
0.23 HP
Notes:
Condition:   NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

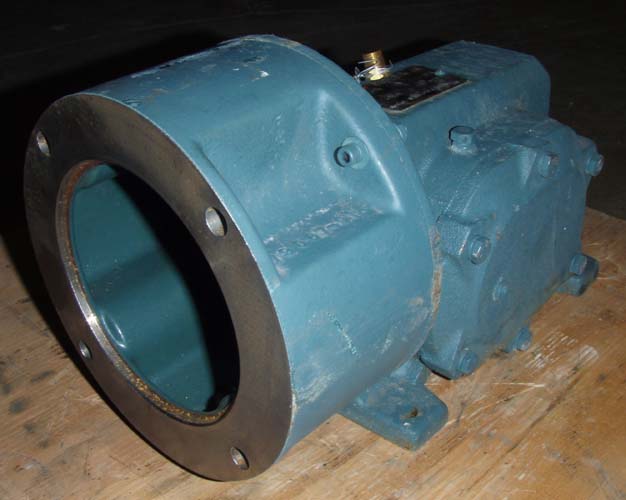

Click on images for larger view.
