- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A

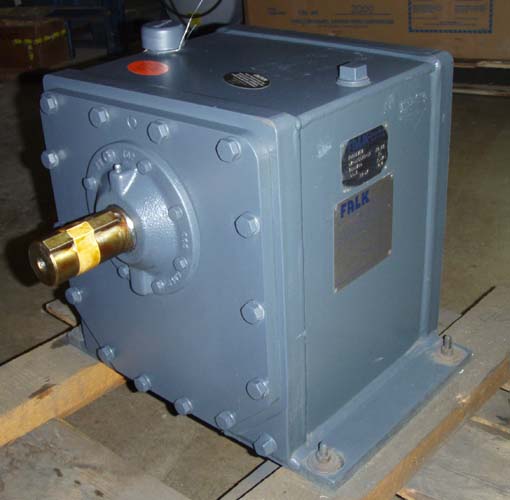

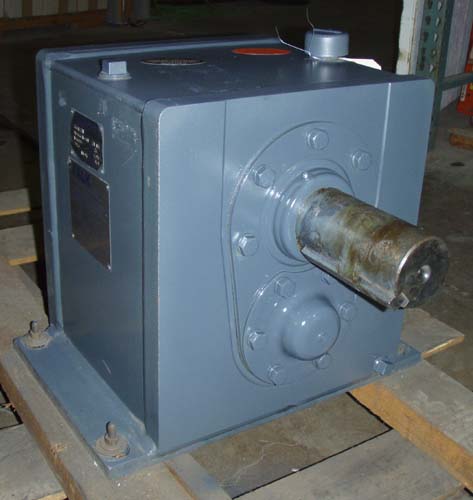

Manufacturer:       FALK ULTRAMAX Our ID No.       007258
Model:       2060FZ2A Ratio:       21.13
MO# or S/N       97-0B6616-01 Alt. S/N
IP Speed       1800 HP rating       20 Cat. Rating       59.3
OP Speed:       85 SF / SC       2.97
Date       11-97 Oil Capacity       4.4
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       45,100 Lb-Inches Shaft Diameters High Speed:   1.875
Low Speed:   2.750
Weight       340 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
21.13:1

84 RPM
59.3 HP
1430 RPM
68 RPM
48.6 HP
1170 RPM
56 RPM
39.8 HP
Notes:
Condition:
 NEW SURPLUS
