- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       Dodge Master XL Our ID No.       007262
Model:       56WM16F Ratio:       10:1
MO# or S/N       3381994001UY Alt. S/N       07916514MP
IP Speed       1750 HP rating       1.88 Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       583 Lb-Inches Shaft Diameters High Speed:   COUPLING
Low Speed:   0.875
Weight       39 Lbs Approx. Assembly       L1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
10:1

175 RPM
1.88 HP
1170 RPM
116 RPM
1.51 HP
870 RPM
86 RPM
1.21 HP
Notes:
Condition:    NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

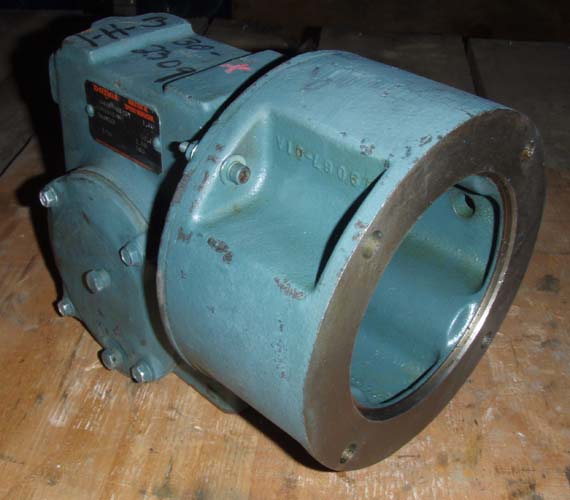

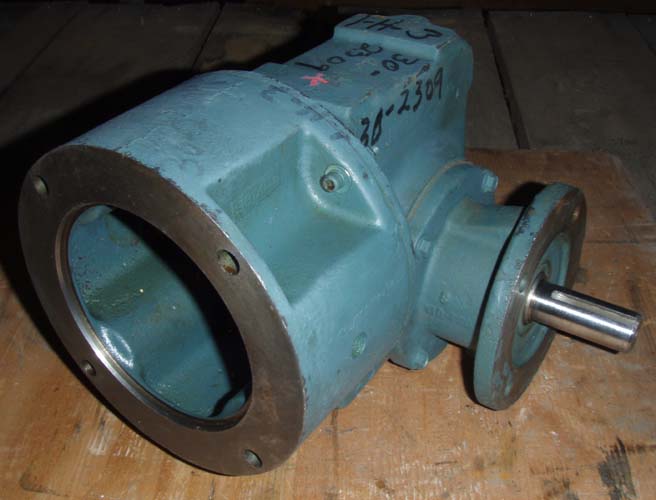

Click on images for larger view.
