- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK     OMNIBOX SERIES Our ID No.       007266
Model No:       1206WBM2A Ratio:       40:1
S/N       47045620302 Center Distance       2.06
IP Speed       1750 HP rating       0.71
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating       755 Lb-Inches Shaft Diameters High Speed:   0.625
Low Speed:   1.00
Weight       30 Lbs Approx. Assembly       2
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
40 :1

44 RPM
0.710 HP
1170 RPM
29 RPM
0.568 HP
870 RPM
22 RPM
0.469 HP
Condition:
    NEW SURPLUS

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

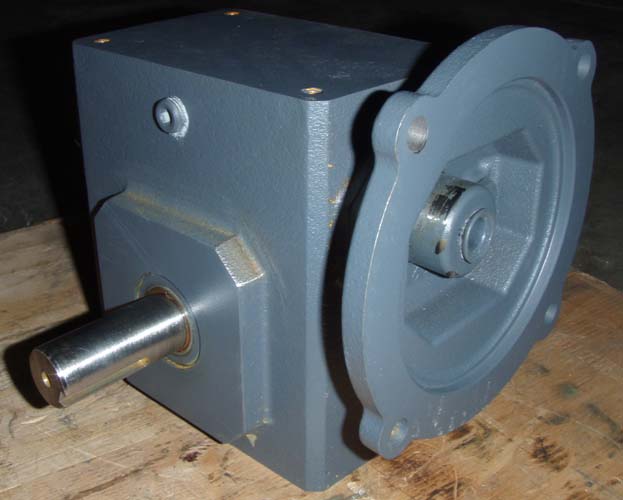

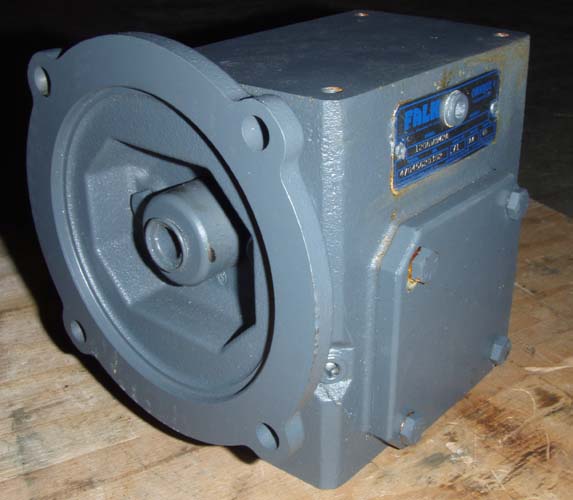

Click on images for larger view.
