N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.       007271
Model:       RK1030F2A 002 Ratio:       31.060
MO# or S/N       01-0X0260-10 Alt. S/N
IP Speed       HP rating       Cat. Rating
OP Speed:       SF / SC
Date       8/1/02 Oil Capacity       1.2 GALS
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       4530 Lb-Inches Shaft Diameters High Speed:   1.125
Low Speed:   1.750
Weight       140 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
31.060:1

56 RPM
4.05 HP
1430 RPM
45 RPM
3.40 HP
1170 RPM
37 RPM
2.85 HP
870 RPM
28 RPM
2.20 HP
720 RPM
22 RPM
1.86 HP
580 RPM
18 RPM
1.55 HP
Notes:
Condition:
 NEW SURPLUS


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

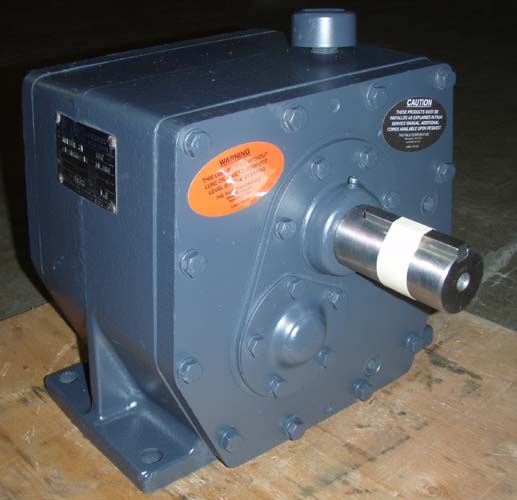

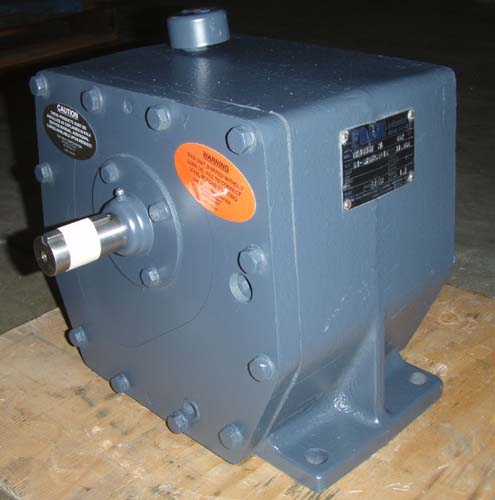

Click on images for larger view.
