- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       SUMITOMO SM-CYCLO Our ID No.       007277
Model:       CHHS-6135Y-R2-8 Ratio:       8:1
MO# or S/N       VA0250580 Alt. S/N
IP Speed       1750 HP rating       15.2 Cat. Rating
OP Speed:       SF / SC       1.0
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       4,150 Lb-Inches Shaft Diameters High Speed:   .875
Low Speed:   1.875
Weight       95 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
8:1

218.75 RPM
15.2 HP
1170 RPM
146.25 RPM
14.1 HP
870 RPM
108.75 RPM
11.3 HP
580 RPM
72.5 RPM
8.20 HP
Notes:
Condition: NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

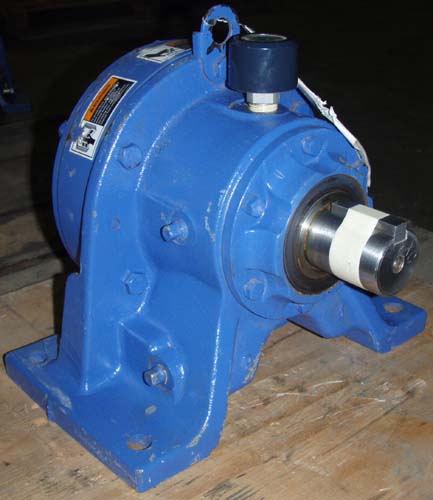

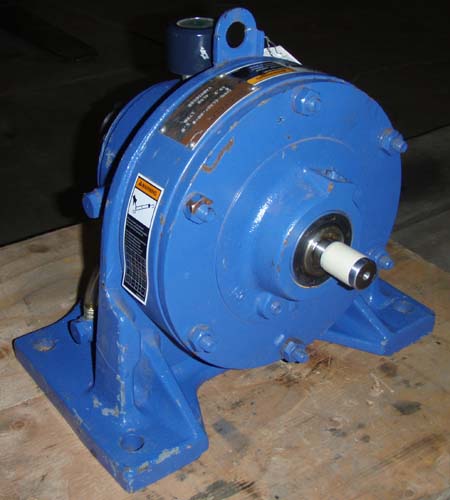

Click on images for larger view.
