Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       MORSE Our ID No.       007280
Model:       35DV Ratio:       150:1
MO# or S/N       E82MN5167 Alt. S/N
IP Speed       1750 HP rating       1.40 Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       5,311 Lb-Inches Shaft Diameters High Speed:   .750
Low Speed:   1.625
Weight       111 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
150:1

11.67 RPM
1.44 HP
1170 RPM
7.67 RPM
1.02 HP
870 RPM
5.80 RPM
.80 HP
580 RPM
3.87 RPM
.57 HP
Notes:
Condition: NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

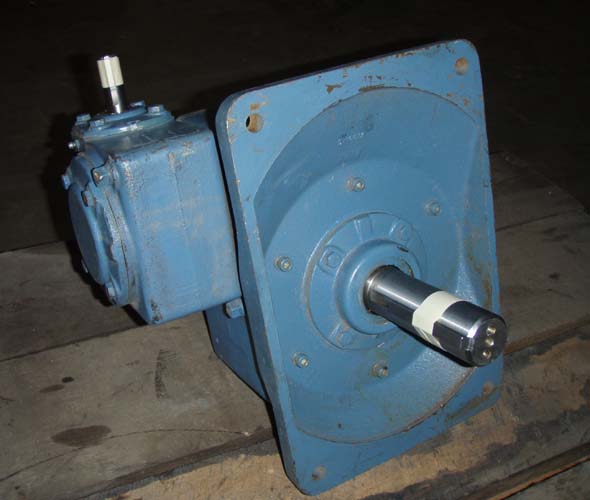

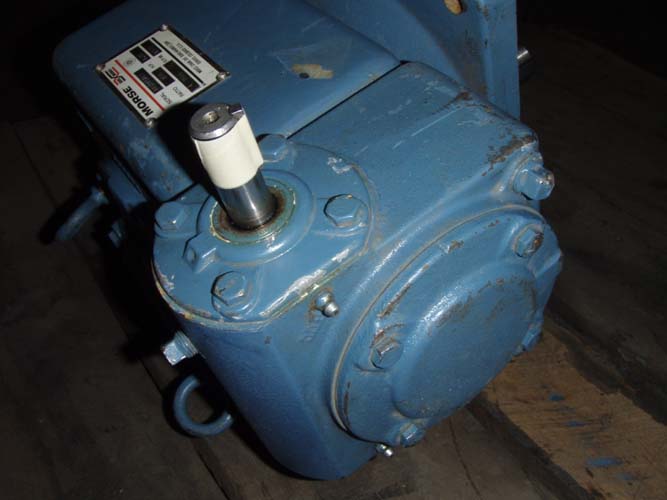

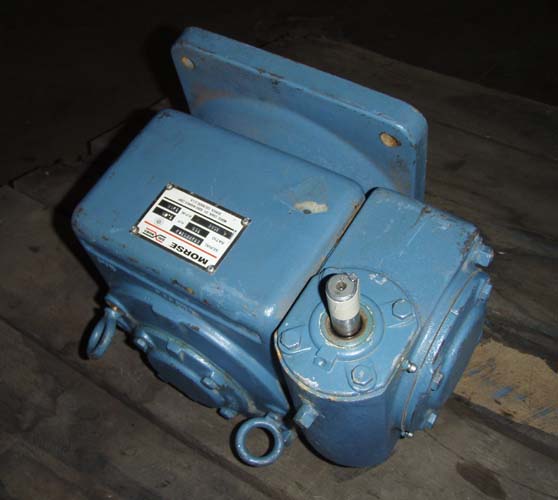

Click on images for larger view.
