- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A

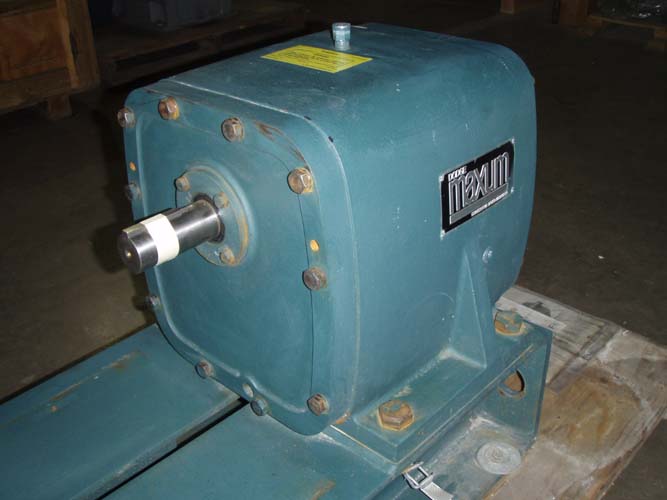

Manufacturer:       DODGE MAXUM Our ID No.       007286
Model:       DCR 4 Ratio:       13.89
MO# or S/N       299078 FK 3788389-001 Alt. S/N
IP Speed       1750 HP rating       58.4 Cat. Rating
OP Speed:       125 SF / SC       1.0
Date       Oil Capacity       16.60 QTS
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       28,100 Lb-Inches Shaft Diameters High Speed:   1.625
Low Speed:   2.875
Weight       330 Lbs Approx. Assembly       A1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
13.89:1

125.4 RPM
58.4 HP
1430 RPM
103.9 RPM
51.2 HP
1170 RPM
83.9 RPM
42.7 HP
870 RPM
62.4 RPM
32.7 HP
720 RPM
51.6 RPM
27.5 HP
580 RPM
41.6 RPM
22.6 HP
Notes:
Condition: NEW
