- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       DODGE TIGEAR 2 Our ID No.       007291
Model:       20A20R14 Ratio:       20:1
MO# or S/N       17143 Alt. S/N
IP Speed       1750 HP rating       1.34 Cat. Rating
OP Speed:       SF / SC       1.0
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       796 Lb-Inches Shaft Diameters High Speed:   0.625
Low Speed:   1.00
Weight       Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
20:1

88 RPM
1.34 HP
Notes:
Condition:


NEW SURPLUS

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

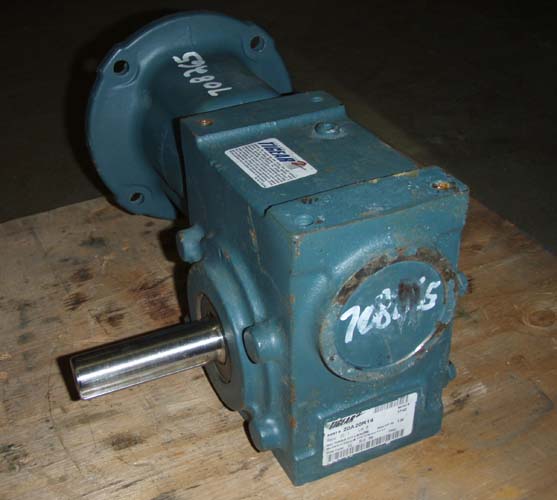

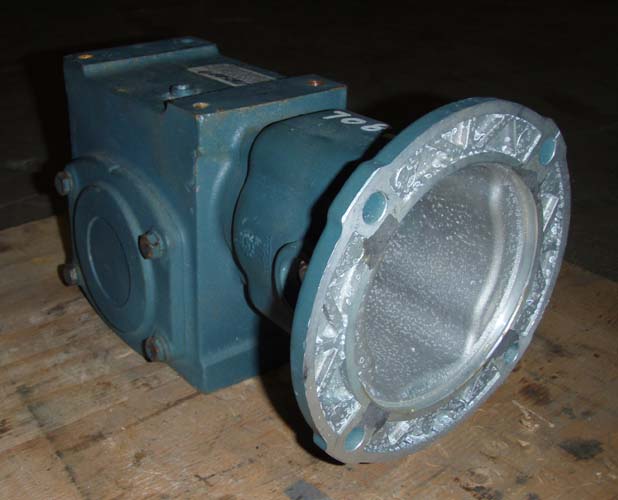

Click on images for larger view.
