- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       DODGE MAXUM Our ID No.       007312
Model:       TCR12 Ratio:       31.21
MO# or S/N       Alt. S/N
IP Speed       1750 HP rating       403 Cat. Rating
OP Speed:       SF / SC       1.0
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       427,000 Lb-Inches Shaft Diameters High Speed:   2.375
Low Speed:   7.000
Weight       4200 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
31.21:1

55.8 RPM
403 HP
1430 RPM
46.2 RPM
354 HP
1170 RPM
37.3 RPM
291 HP
870 RPM
27.7 RPM
221 HP
720 RPM
22.9 RPM
185 HP
580 RPM
18.5 RPM
151 HP
Notes:
Condition:



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

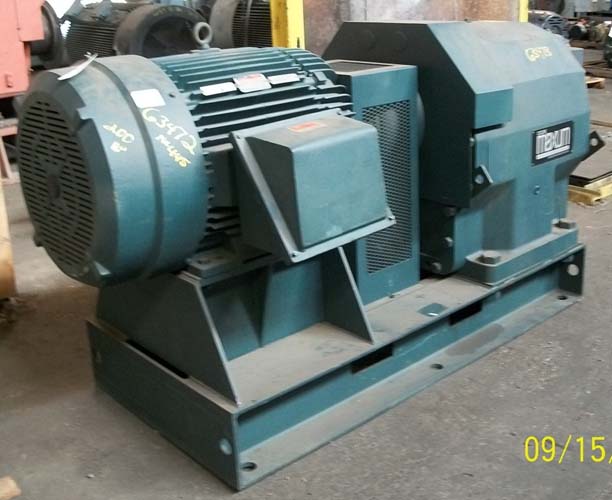

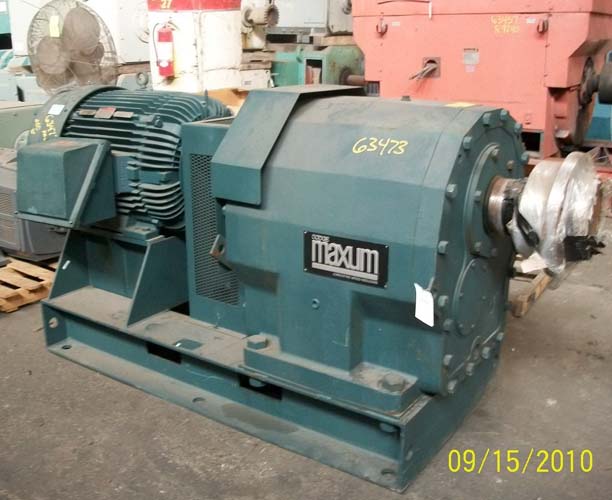

Click on images for larger view.
