Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.       007320
Model:       7EB3-16B5 Ratio:       21.03
MO# or S/N       6-432090 Alt. S/N
IP Speed       1750 HP rating       82.5 Cat. Rating
OP Speed:       84 SF / SC       1.0
Date       3/93 Oil Capacity       17.3 GALS
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       62100 Lb-Inches Shaft Diameters High Speed:  2.125
Low Speed:  3.875
Weight       1740 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
21.03:1

84 RPM
82.5 HP
1430 RPM
68 RPM
68 HP
1170 RPM
56 RPM
57 HP
870 RPM
42 RPM
43 HP
720 RPM
34 RPM
36 HP
Notes:
Condition:


REBUILT 11/06

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

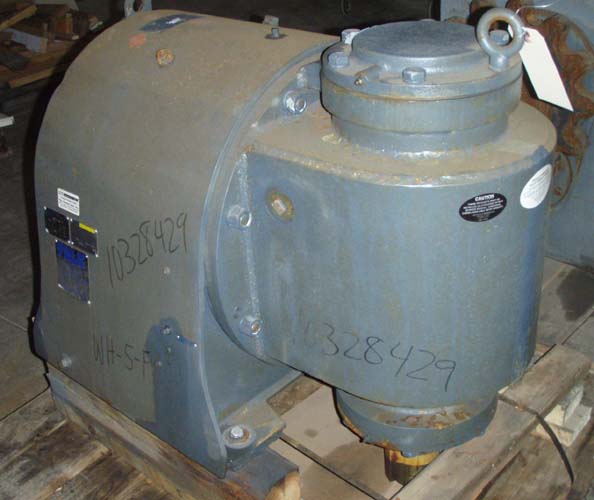

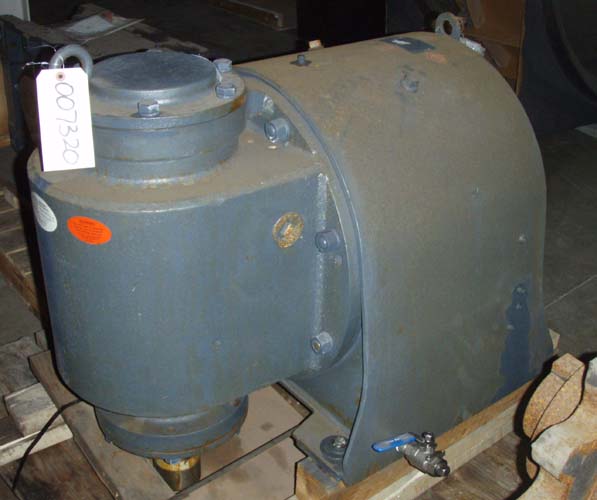

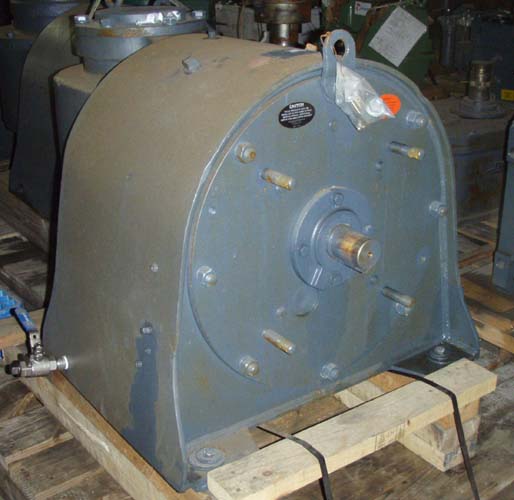

Click on images for larger view.
