- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.       007322
Model:       1090YF1-AB Ratio:       4.959
MO# or S/N       7-765960-01 Alt. S/N
IP Speed       1182 HP rating       300 Cat. Rating
OP Speed:       238.7 SF / SC       1.46
Date       5/93 Oil Capacity       5.5 GALS
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       131000 Lb-Inches Shaft Diameters High Speed:   3.250
Low Speed:   4.500
Weight       1765 Lbs Approx. Assembly       19
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
5.577:1

350 RPM
733 HP
1430 RPM
280 RPM
610 HP
1170 RPM
230 RPM
507 HP
870 RPM
175 RPM
386 HP
720 RPM
140 RPM
323 HP
580 RPM
115 RPM
264 HP
Notes:
Condition: 6/05 - REBUILT



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

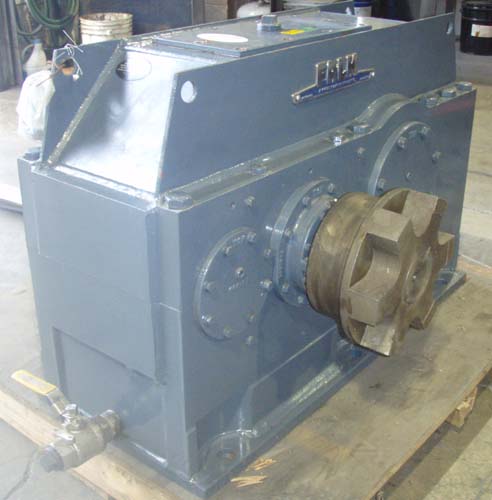

Click on images for larger view.
