Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.       007327
Model:       2110YBXD2-K Ratio:       20.97
MO# or S/N       94-065554-01 Alt. S/N
IP Speed       1170 HP rating       150 Cat. Rating
OP Speed:       55.79 SF / SC       1.41
Date       03/94 Oil Capacity       36 GALS
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       232000 Lb-Inches Shaft Diameters High Speed:   2.7500
Low Speed:   5.500
Weight       Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
20.97:1

84 RPM
308 HP
1430 RPM
68 RPM
255 HP
1170 RPM
56 RPM
211 HP
870 RPM
42 RPM
159 HP
720 RPM
34 RPM
133 HP
580 RPM
28 RPM
108 HP
Notes:
Condition:



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

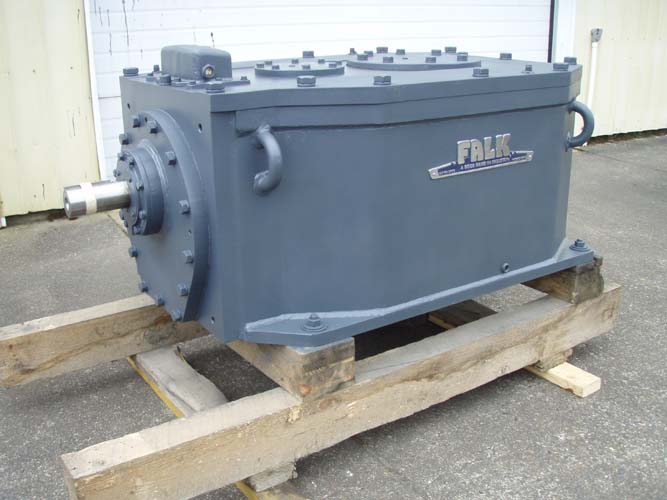

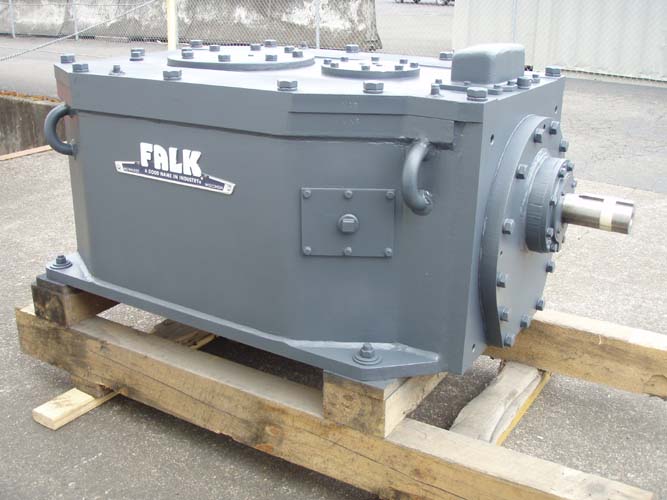

Click on images for larger view.
