Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.       007336
Model:       2050F2A Ratio:       20.56
MO# or S/N       01-0A6676-16 Alt. S/N
IP Speed       1750 HP rating       28 Cat. Rating
OP Speed:       85.11 SF / SC       2
Date       12/01 Oil Capacity       3.2 GALS
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       25500 Lb-Inches Shaft Diameters High Speed:   1.6250
Low Speed:   2.5000
Weight       340 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
20.56:1

84 RPM
34.4 HP
1430 RPM
68 RPM
28.1 HP
1170 RPM
56 RPM
23.1 HP
870 RPM
42 RPM
17.2 HP
720 RPM
34 RPM
14.2 HP
580 RPM
28 RPM
11.5 HP
Notes:
Condition:


REBUILT 07/03

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

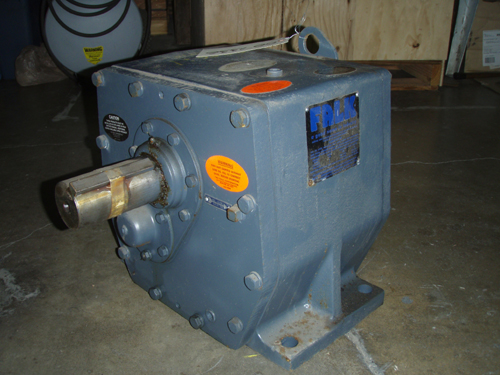

Click on images for larger view.
