- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A

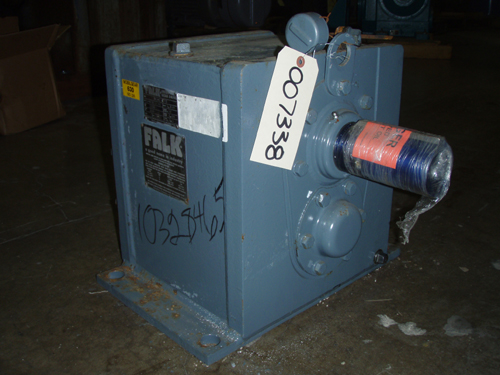

Manufacturer:       FALK Our ID No.       007338
Model:       1060FC2A Ratio:       6.149
MO# or S/N       95-0M0878-3 Alt. S/N
IP Speed       2214 HP rating       50 Cat. Rating
OP Speed:       354 SF / SC       1.84
Date       Oil Capacity       3.2 GALS
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       20400 Lb-Inches Shaft Diameters High Speed:   1.8750
Low Speed:   2.750
Weight       340 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
6.149:1

280 RPM
92.1 HP
1430 RPM
230 RPM
79.1 HP
1170 RPM
190 RPM
68.1 HP
870 RPM
140 RPM
54.5 HP
720 RPM
115 RPM
47.3 HP
580 RPM
95 RPM
40.2 HP
Notes:
Condition:
