- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.       007339
Model:       52-70FZ3A-86.25 Ratio:       86.25
MO# or S/N       7-7M3529-01 Alt. S/N
IP Speed      1750 HP rating      5 Cat. Rating
OP Speed:      20 SF / SC       2
Date       8/77 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       26500 Lb-Inches Shaft Diameters High Speed:   1.7500
Low Speed:   3.250
Weight       480 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
86.25:1

20 RPM
8.68 HP
1430 RPM
16.5 RPM
6.98 HP
1170 RPM
13.5 RPM
5.72 HP
870 RPM
10.0 RPM
4.50 HP
720 RPM
8.3 RPM
3.52 HP
580 RPM
6.8 RPM
2.82 HP
Notes:
Condition:



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

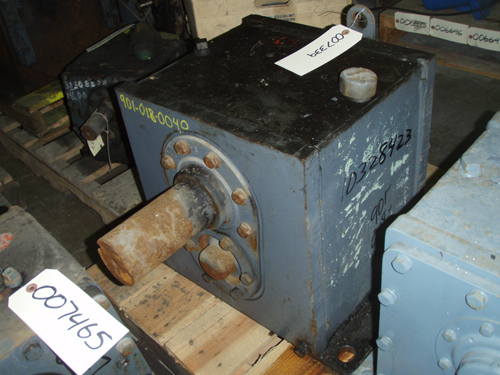

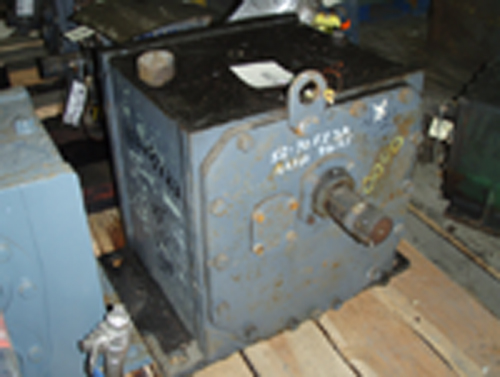

Click on images for larger view.
