Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.       007341
Model:       1050FC2A Ratio:       6.35
MO# or S/N       94-0M0719-6 Alt. S/N
IP Speed       1200 HP rating       25 Cat. Rating
OP Speed:       196 SF / SC       1.61
Date       7/94 Oil Capacity       3.2 GALS
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       12000 Lb-Inches Shaft Diameters High Speed:   1.6250
Low Speed:   2.5000
Weight       340 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
6.35:1

280 RPM
54.5 HP
1430 RPM
230 RPM
46.8 HP
1170 RPM
190 RPM
40.3 HP
870 RPM
140 RPM
31.4 HP
720 RPM
115 RPM
26.2 HP
580 RPM
95 RPM
21.3 HP
Notes:
Condition:



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

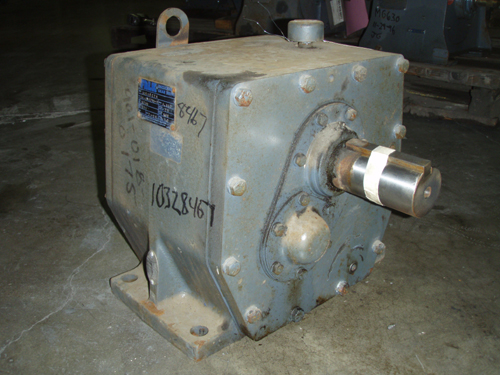

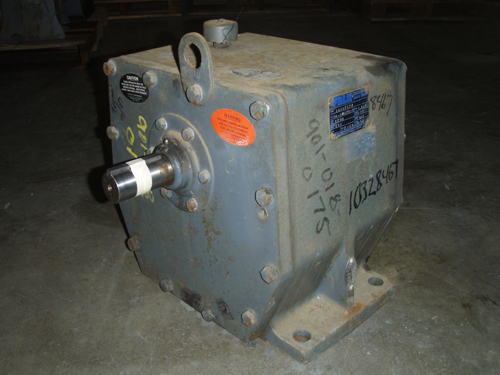

Click on images for larger view.
