Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.       007342
Model:       4EZ2-06A3 Ratio:       7.503
MO# or S/N       7086571 Alt. S/N
IP Speed       HP rating       15 Cat. Rating
OP Speed:       SF / SC       3
Date       11/70 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       8790 Lb-Inches Shaft Diameters High Speed:   1.375
Low Speed:   2.500
Weight       300 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
7.503:1

230 RPM
32.0 HP
1430 RPM
190 RPM
26.8 HP
1170 RPM
155 RPM
22.3 HP
870 RPM
115 RPM
17.3 HP
720 RPM
95 RPM
14.5 HP
Notes:
Condition:


REBUILT 12/93

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

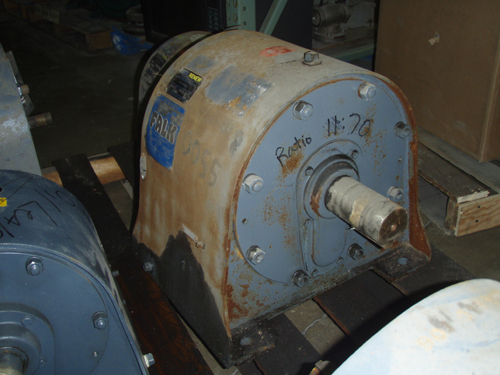

Click on images for larger view.
