Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A

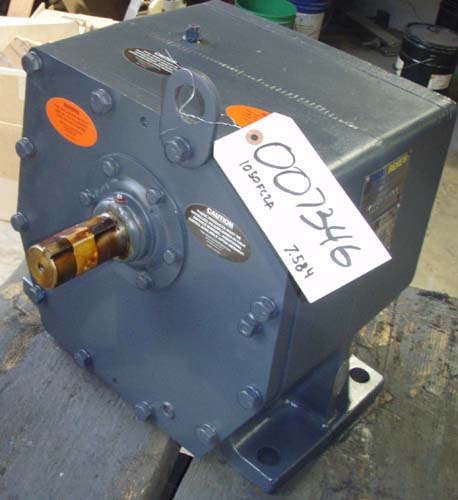

Manufacturer:       FALK Our ID No.       007346
Model:       1050FC2A Ratio:       7.584
MO# or S/N       91-M0178-7 Alt. S/N
IP Speed       1170 HP rating       34 Cat. Rating
OP Speed:       154 SF / SC       2.3
Date       1/91 Oil Capacity       3.2 GALS
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       12800 Lb-Inches Shaft Diameters High Speed:   1.6250
Low Speed:   2.5000
Weight       340 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
7.584:1

230 RPM
46.8 HP
1430 RPM
190 RPM
40.2 HP
1170 RPM
155 RPM
34.1 HP
870 RPM
115 RPM
25.7 HP
720 RPM
95 RPM
21.4 HP
580 RPM
77 RPM
17.4 HP
Notes:
Condition:


3/99 - REBUILT
