Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.       007354
Model:       31-4EZ3-06A4 Ratio:       58.47
MO# or S/N       7-184511 Alt. S/N
IP Speed       HP rating       3 Cat. Rating
OP Speed:       30 SF / SC       1
Date       2/71 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       9150 Lb-Inches Shaft Diameters High Speed:   1.000
Low Speed:   2.500
Weight       320 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
58.47:1

30 RPM
4.34 HP
1430 RPM
25 RPM
3.72 HP
1170 RPM
20 RPM
3.33 HP
870 RPM
15 RPM
2.55 HP
720 RPM
12.5 RPM
2.22 HP
Notes:
Condition:


REBUILT 4/96

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

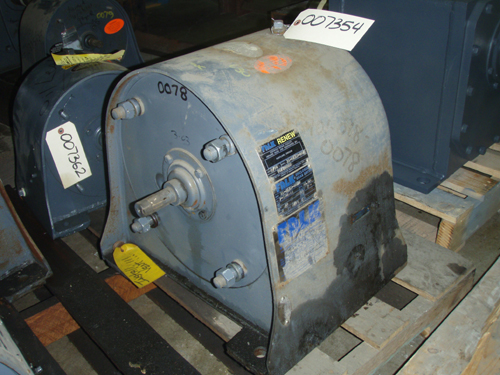

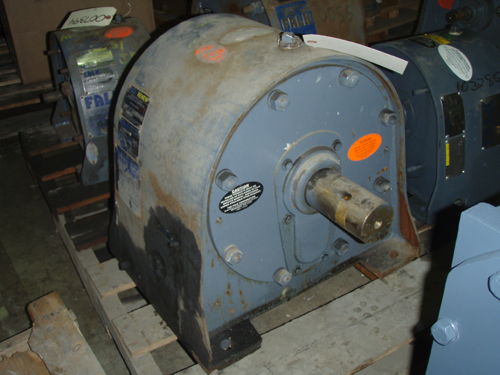

Click on images for larger view.
