- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.       007355
Model:       1040FZ2A Ratio:       7.479
MO# or S/N       98-0M2176-19 Alt. S/N
IP Speed       1750 HP rating       15 Cat. Rating
OP Speed:       230 SF / SC       1.50
Date       7/98 Oil Capacity       2.2 GALS
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       6190 Lb-Inches Shaft Diameters High Speed:   1.3750
Low Speed:   2.000
Weight       200 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
7.479:1

230 RPM
23.0 HP
1430 RPM
190 RPM
19.7 HP
1170 RPM
155 RPM
17.0 HP
870 RPM
115 RPM
13.6 HP
720 RPM
95 RPM
11.8 HP
580 RPM
77 RPM
9.84 HP
Notes:
Condition:



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

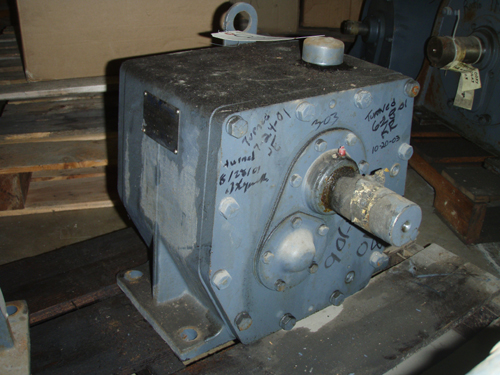

Click on images for larger view.
