- Speed Reducer Data Sheet -
HOME

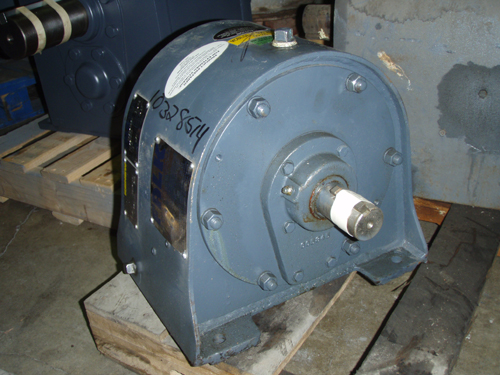

N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.       007362
Model:       2EZ3-0651 Ratio:       31.93
MO# or S/N       95FR0479 Alt. S/N
IP Speed       1750 HP rating       1 Cat. Rating
OP Speed:       56 SF / SC       1.27
Date       4/95 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       2850 Lb-Inches Shaft Diameters High Speed:   .875
Low Speed:   1.562
Weight       135 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
31.93:1

56 RPM
2.47 HP
1430 RPM
45 RPM
2.04 HP
1170 RPM
37 RPM
1.68 HP
870 RPM
28 RPM
1.30 HP
720 RPM
22 RPM
1.10 HP
Notes:
Condition:
REBUILT: 8/07
