- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.       007394
Model:       52-2EZ2-06C3 Ratio:       7.656
MO# or S/N       7-184542 Alt. S/N
IP Speed       HP rating       Cat. Rating
OP Speed:       SF / SC
Date       5/71 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       2400 Lb-Inches Shaft Diameters High Speed:   1.000
Low Speed:   1.562
Weight       128 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
7.656:1

230 RPM
8.73 HP
1430 RPM
190 RPM
7.26 HP
1170 RPM
155 RPM
6.06 HP
870 RPM
115 RPM
4.57 HP
720 RPM
95 RPM
3.82 HP
Notes:
Condition:
REBUILT: 5/96

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

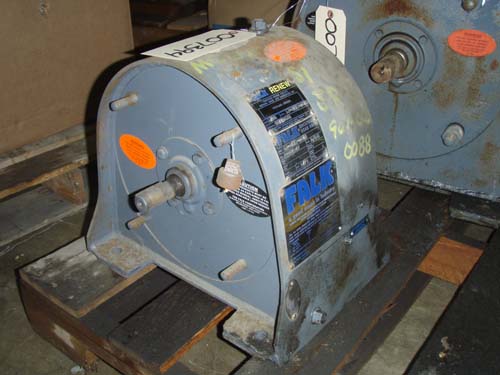

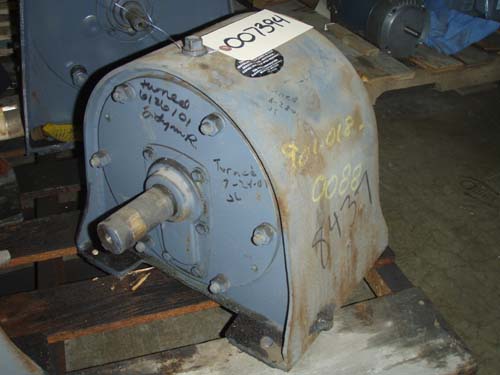

Click on images for larger view.
