Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A

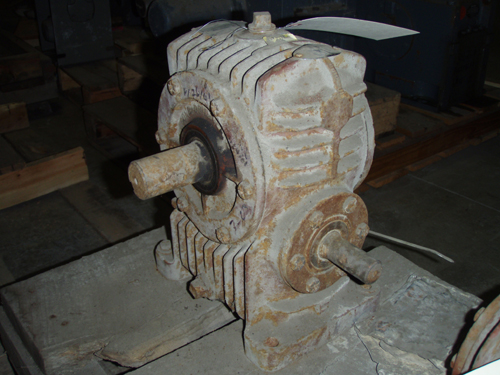

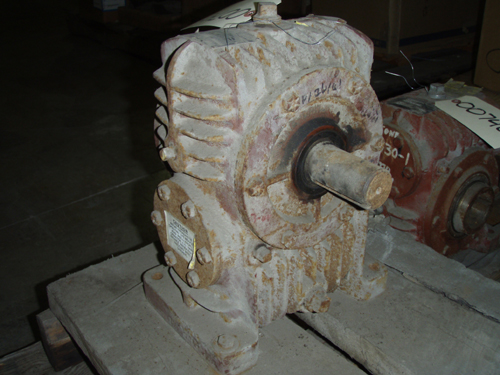

Manufacturer:       CONE DRIVE Our ID No.       007401
Model:       HU-30-C1 Ratio:       20
MO# or S/N       8005877 Alt. S/N
IP Speed       1750 HP rating       2.92 Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       2580 Lb-Inches Shaft Diameters High Speed:  1.000
Low Speed:  1.500
Weight       83 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
20:1

87.5 RPM
4.22 HP
1170 RPM
58.5 RPM
3.37 HP
870 RPM
43.5 RPM
2.87 HP
720 RPM
36 RPM
2.52 HP
580 RPM
29 RPM
2.15 HP
Notes:
Condition:
