- Speed Reducer Data Sheet -
HOME
|
|

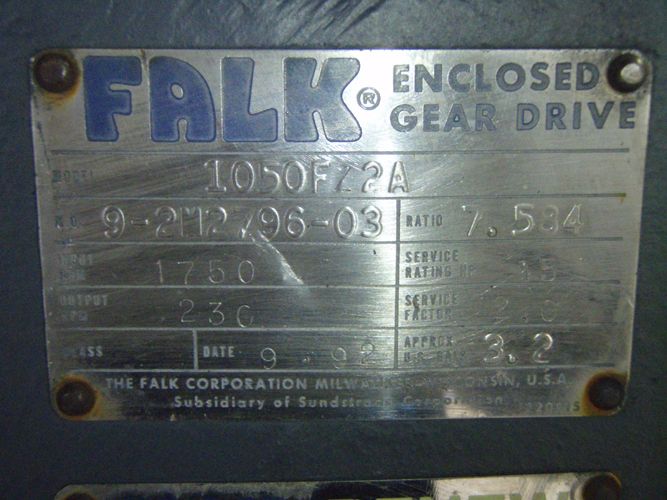

N A M E P L A T E D A T A
|
|
Manufacturer:
|
FALK
|
Our ID No.
|
007408
|
|
Model:
|
1050FZ2A
|
Ratio:
|
7.584
|
|
MO# or S/N
|
9-2M2796-03
|
Alt. S/N
|
|
|
IP Speed
|
1750
|
HP rating
|
15
|
Cat. Rating
|
|
| OP Speed:
|
230
|
SF / SC
|
2.0
|
|
Date
|
9/92
|
Oil Capacity
|
3.2
|
|
A D D I T I O N A L C A T A L O G I N F O R M A T I O N
|
|
Torque Rating
|
12800 Lb-Inches
|
Shaft Diameters
|
High Speed:
1.6250
Low Speed:
2.5000
|
|
Weight
|
340 Lbs Approx.
|
Assembly
|
|
H.S. Shaft
RPM |
Ratio |
Approx. L.S.
Shaft RPM |
HP
Ratings |
|
1750 RPM
|
7.584:1
|
230 RPM
|
46.8 HP
|
|
1430 RPM
|
190 RPM
|
40.2 HP
|
|
1170 RPM
|
155 RPM
|
34.1 HP
|
|
870 RPM
|
115 RPM
|
25.7 HP
|
|
720 RPM
|
95 RPM
|
21.4 HP
|
|
580 RPM
|
77 RPM
|
17.4 HP
|
|
|
Notes:
|
Condition:
9/94 - REBUILT
|
