- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.       007445
Model:       6C2-02A Ratio:       7.645
MO# or S/N       7-8M374-01-02 Alt. S/N
IP Speed       1750 HP rating       40 Cat. Rating
OP Speed:       229 SF / SC
Date       10/78 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       20,400 Lb-Inches Shaft Diameters High Speed:   2.125
Low Speed:   3.375
Weight       660 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
7.645:1

230 RPM
74.0 HP
1430 RPM
190 RPM
62.5 HP
1170 RPM
155 RPM
52.7 HP
870 RPM
115 RPM
40.4 HP
720 RPM
95 RPM
33.8 HP
Notes:
Condition:
REBUILT: 3/06

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

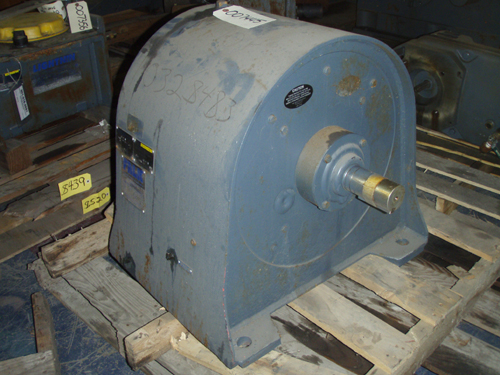

Click on images for larger view.
